SOMMER Reflective Photocell Sensor 21M

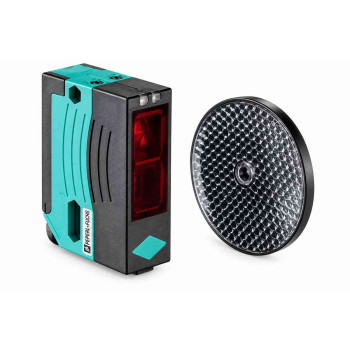

SOMMER Reflective Photocell Sensor 21M UAE

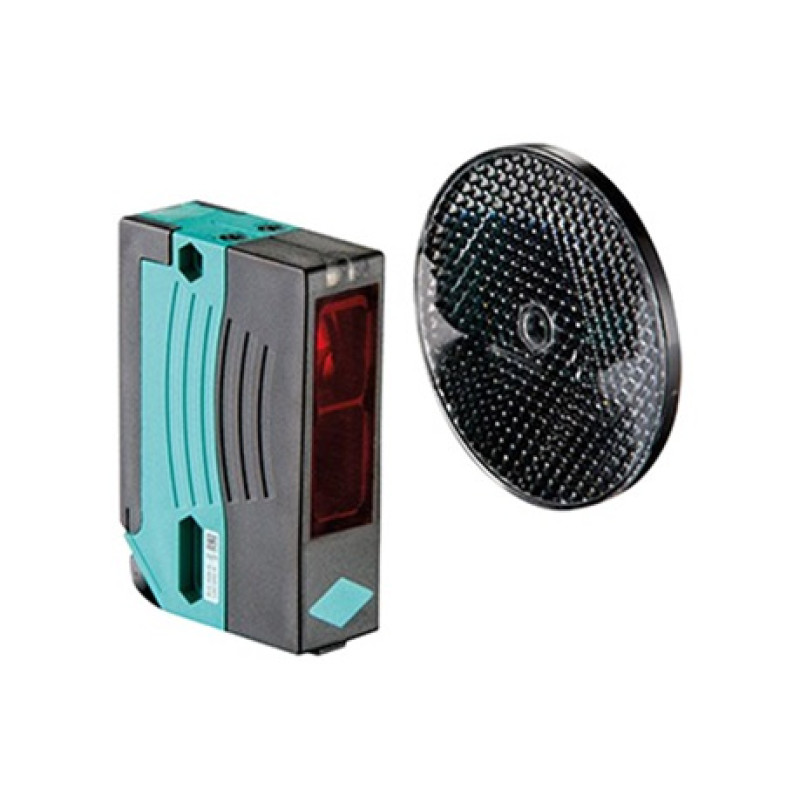

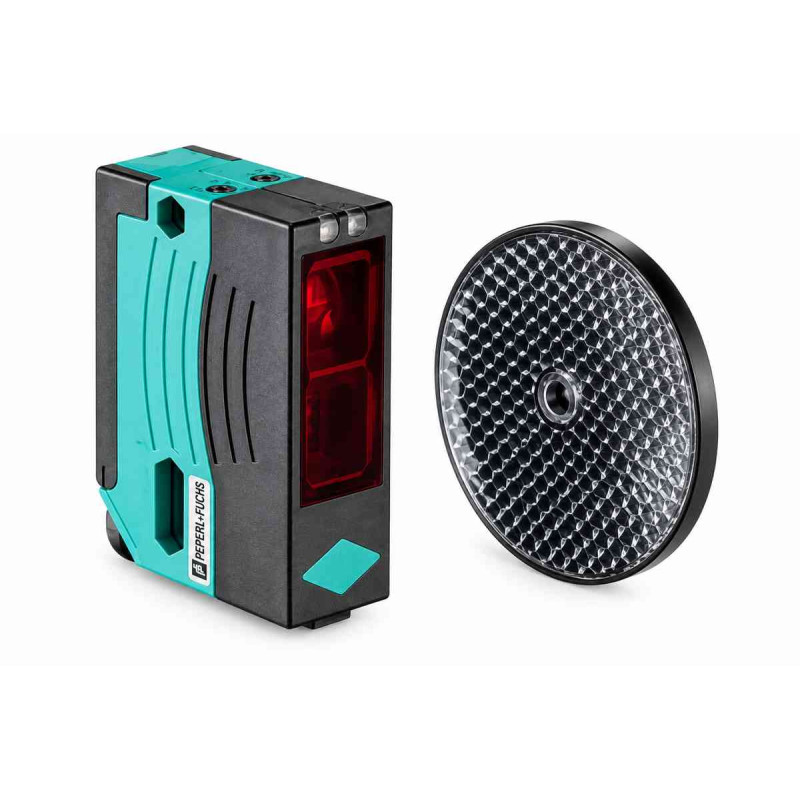

SOMMER Reflective Photocell Sensor, article number 5228, is a professional reflector-type photoelectric safety sensor designed for automatic gates, garage doors, parking barriers and access automation systems. Unlike conventional photocells requiring powered transmitter and receiver units on opposite sides, this reflective system requires power on only one side and uses a passive reflector on the opposite side.

The SOMMER reflective light barrier provides a detection range of up to 21 metres, operates from a wide 12–240V AC/DC power supply and features an IP67 protection rating. A potential-free changeover relay contact makes the sensor suitable for integration with many compatible gate, door and barrier control systems.

SOMMER Reflective Photocell Key Features

• Original SOMMER reflective photocell sensor
• Article number: 5228
• Reflector-type photoelectric light barrier
• Power supply required on one side only
• Passive reflector installed on opposite side
• Detection range: 0–21 metres
• Wide operating voltage: 12–240V AC/DC
• Protection rating: IP67
• Potential-free changeover relay contact
• Mounting bracket included
• Reflector included
• Suitable for automatic gates
• Suitable for parking barriers
• Suitable for compatible garage and industrial doors
• Suitable for outdoor automation applications

SOMMER Reflective Photocell Technical Specifications

21 Metre Reflective Gate Photocell

The SOMMER 5228 provides a maximum detection range of up to 21 metres, making it suitable for wide automatic gate entrances, parking barrier lanes and other automation applications where a long photocell beam is required.

The actual usable distance depends on correct sensor and reflector alignment, installation conditions and the surrounding environment.

Power Required on One Side Only

One of the main advantages of the SOMMER reflective photocell is that electrical power is required on only one side of the entrance.

The powered photocell sends the light beam toward the reflector installed on the opposite side. The reflector returns the beam to the sensor. This eliminates the need to run an electrical power cable to a separate transmitter or receiver on the opposite side.

How a Reflective Photocell Works

The sensor continuously directs a light beam toward the supplied reflector. Under normal conditions, the reflector returns the beam to the photocell.

When a vehicle, person or other object interrupts the beam between the sensor and reflector, the photocell changes the state of its relay output. A compatible gate or barrier control system can use this signal as part of its safety or control logic.

12–240V AC/DC Wide Voltage Input

The SOMMER reflective photocell accepts a wide power supply range of 12–240V AC/DC. This provides considerable installation flexibility compared with photocells restricted to only 12V or 24V operation.

The exact wiring and relay configuration must be selected according to the photocell instructions and the control board being connected.

Potential-Free Relay Output

The SOMMER 5228 provides a potential-free changeover relay contact. This type of dry-contact output can be integrated with many compatible automation controllers that provide a photocell, safety or external control input.

Always check the input requirements of the gate motor, garage door or parking barrier control board before wiring the photocell.

IP67 Outdoor Photocell Sensor

With an IP67 protection rating, the SOMMER reflective photocell provides a high level of protection against dust and water ingress when correctly installed.

This makes the sensor particularly useful for outdoor gate and parking automation applications where the photocell may be exposed to demanding environmental conditions.

Automatic Sliding Gate Safety Sensor

The SOMMER reflective photocell can be integrated with compatible automatic sliding gate systems. When installed as part of the gate safety system, interruption of the photocell beam can be detected by the gate controller.

The exact response—such as preventing closing, stopping movement or reversing the gate—depends on the control board, photocell input and programmed safety logic.

Swing Gate Photocell Sensor

The sensor can also be used with compatible automatic swing gate systems. Correct positioning of the photocell helps monitor the required vehicle or pedestrian detection area around the automatic entrance.

Additional safety devices may be required depending on the gate design, movement area and risk assessment.

Parking Barrier Reflective Photocell

The long-range reflective design is well suited to compatible automatic parking barrier systems. The photocell can monitor the vehicle lane by transmitting its beam across the entrance to the reflector.

Because power is required on only one side, installation can be especially convenient where running cables underneath a driveway to the opposite side of the barrier lane would be difficult.

Garage & Industrial Door Applications

The SOMMER reflective photocell can also be integrated with compatible garage and industrial door automation where a suitable relay-input safety circuit is available.

Compatibility and required safety functions should always be checked against the exact door operator and control unit.

Reflective Photocell vs Standard Photocell

SOMMER 5228 Reflective Photocell Installation

Install the powered photocell securely on one side of the entrance and position the supplied reflector directly opposite it. The sensor and reflector must be correctly aligned so that the reflected beam returns reliably to the photocell.

After installation, test the complete detection zone at multiple positions and verify that interruption of the beam produces the correct response from the connected automation controller.

SOMMER Reflective Photocell Applications

• Automatic sliding gates
• Automatic swing gates
• Parking gate barriers
• Garage door automation
• Industrial doors
• Commercial entrances
• Residential villa gates
• Warehouse entrances
• Vehicle access lanes
• Wide automatic gate entrances

SOMMER Reflective Photocell Package

• 1 × SOMMER reflective photocell sensor
• 1 × Reflector
• 1 × Installation / mounting angle bracket

SOMMER Reflective Photocell Sensor UAE

We supply SOMMER reflective photocell sensors throughout the UAE for automatic gates, parking barriers, garage doors and compatible access automation systems.

Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the required detection distance, available power supply, control-board photocell input and installation location to ensure the SOMMER 5228 reflective photocell is suitable for your automation system.
