Rolling Shutter Central Motor 170Nm 140 KG

170Nm 140 KG Rolling Shutter Central Motor UAE

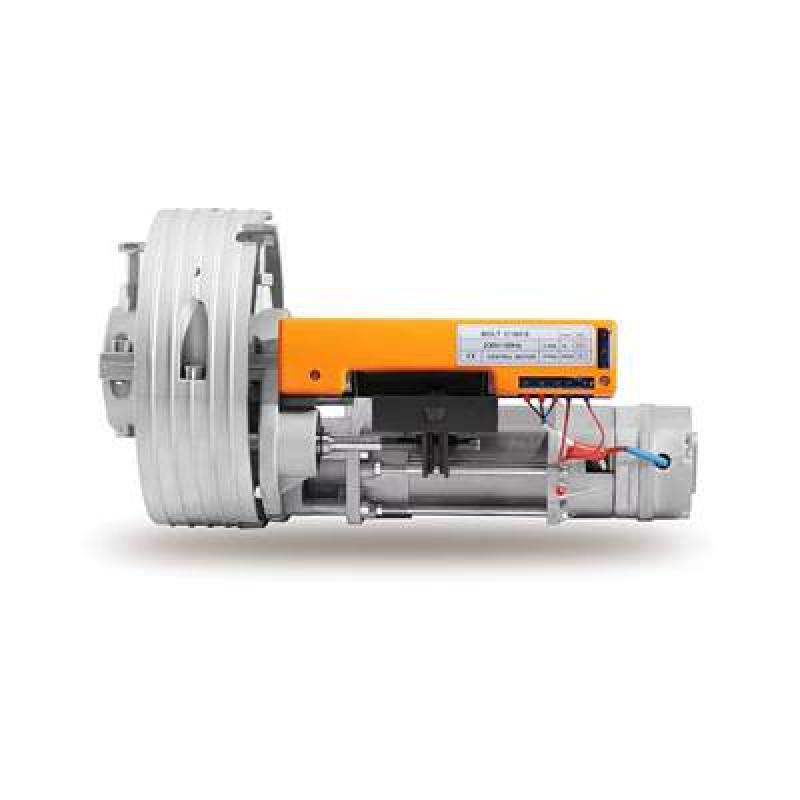

Rolling Shutter Central Motor 170Nm is a powerful automatic roller shutter motor designed for compatible spring-balanced rolling shutter doors. With 170Nm torque and a lifting capacity of up to approximately 140 KG, it is suitable for shops, garages, workshops, warehouses and commercial rolling shutters.

The motor operates on a 220–230V AC power supply and uses a central shaft-mounted design with a 60mm rolling shutter shaft, 205mm pulley / spring box and 100mm motor spindle. Its compact central installation makes it suitable for both new shutter automation projects and replacement of compatible existing central motors.

Rolling Shutter Central Motor 170Nm Key Features

• Central rolling shutter motor
• Rated torque: 170Nm
• Maximum lifting capacity: up to 140 KG
• Power supply: 220–230V AC
• Single-phase rolling shutter automation
• Rolling shutter shaft: 60mm
• Pulley / spring box: 205mm
• Motor spindle: 100mm
• Central shaft-mounted installation
• Suitable for spring-balanced rolling shutters
• Automatic opening and closing
• Compatible with suitable shutter controllers
• Remote-control operation possible with compatible receiver/controller
• Suitable for new installations and replacement applications
• Ideal for shops, garages, workshops and commercial shutters

170Nm Central Motor Technical Specifications

170Nm Torque with 140 KG Lifting Capacity

This central rolling shutter motor delivers approximately 170Nm of torque and is designed for compatible balanced rolling shutters weighing up to approximately 140 KG.

The shutter must be correctly spring-balanced and move smoothly by hand before motor installation. The 140 KG figure should not be used as the only selection criterion because shutter dimensions, spring balance, shaft size and mechanical resistance also affect motor performance.

230V Rolling Shutter Motor

The 170Nm central motor operates from a standard 220–230V AC single-phase power supply, making it suitable for many commercial and residential rolling shutter installations in the UAE.

Electrical connection should be completed by a qualified technician using a suitable rolling shutter controller, switch or automation system.

60mm Shaft & 205mm Pulley

This model is designed around a 60mm rolling shutter shaft and approximately 205mm pulley / spring box, with a 100mm motor spindle.

These dimensions should be checked against the existing shutter before ordering a replacement central motor. Matching the torque alone does not guarantee mechanical compatibility.

Central Rolling Shutter Motor Installation

A central motor is installed directly around the rolling shutter shaft and works together with the shutter's spring-balancing system. This provides a compact automation arrangement without requiring a large external side-mounted gearbox.

For reliable operation, the shutter shaft, springs, bearings, guides and curtain should all be inspected before installation.

Compatible Rolling Shutter Controls

The 170Nm central motor can be connected to a suitable rolling shutter control system according to the required installation.

• Rolling shutter wall switch
• Push-button station
• Rolling shutter motor controller
• Wireless remote receiver
• Remote controls
• Wi-Fi shutter controller
• Smart automation controller
• Key switch

170Nm Central Motor Applications

• Shop rolling shutters
• Retail shop entrances
• Garage roller shutters
• Workshop shutters
• Warehouse rolling shutters
• Commercial roller doors
• Storage facility shutters
• Compatible light-industrial rolling shutters

Central Motor vs Tubular Motor

A central rolling shutter motor and a tubular motor are different products even when both have a 170Nm torque rating. This 170Nm central motor mounts around the spring-supported shutter shaft, while a tubular motor is installed inside a compatible roller tube.

Do not replace a central motor with a tubular motor based only on the torque rating. The shutter construction, shaft diameter, pulley arrangement and balancing system must be considered.

How to Select the Correct Central Motor

Before ordering a replacement rolling shutter central motor, check the shutter weight, shutter width and height, shaft diameter, spring-box diameter, spindle size, supply voltage and existing motor dimensions.

For replacement jobs, sending a clear photo of the existing motor label and shutter shaft arrangement helps identify the correct model.

Rolling Shutter Central Motor 170Nm UAE

We supply 170Nm rolling shutter central motors throughout the UAE for shops, garages, warehouses, workshops and commercial rolling shutter applications.

Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the shutter weight, shaft diameter, pulley size, spindle dimensions and power supply to ensure this 170Nm central motor is mechanically and electrically compatible with your rolling shutter.
