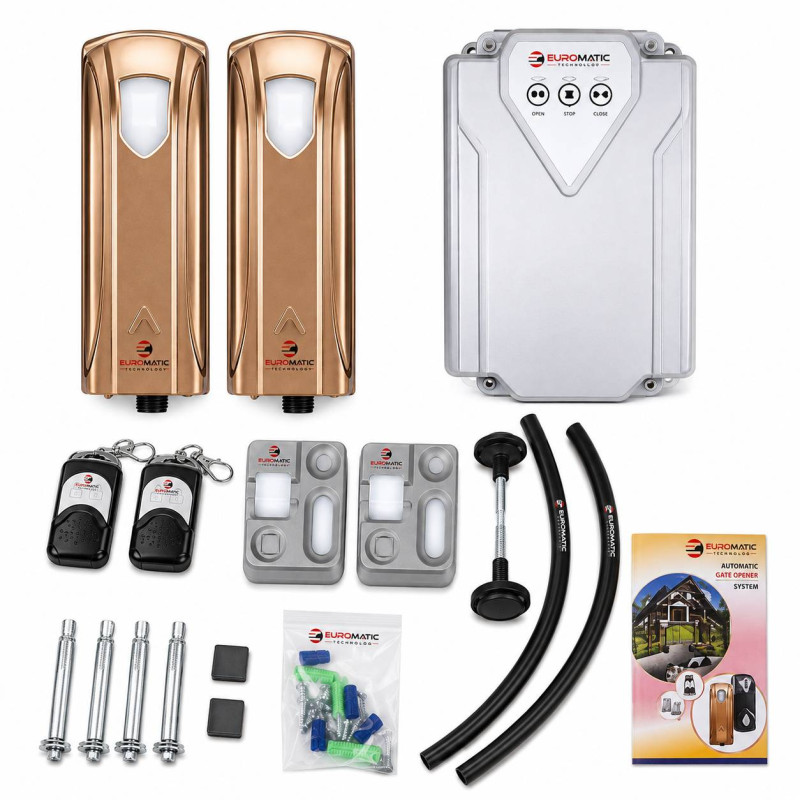

Wheel Roller Swing Gate Motor 800 KG
Price 1,999 AEDIn Stock
800 KG Heavy-Duty Wheel Roller Swing Gate Opener UAE
The Wheel Roller Swing Gate Motor 800 KG is a heavy-duty automatic swing gate opener designed for compatible swing gates weighing up to 800 KG. Instead of using a conventional linear or articulated swing gate arm, this specialized operator uses a motorized wheel and roller drive system mounted directly to the gate leaf.
As the motor operates, the drive wheel maintains contact with the ground and travels together with the gate during opening and closing. This makes the system a practical automation solution for suitable large, heavy, residential, commercial and industrial swing gates.
Wheel Roller Swing Gate Motor Key Features
- Heavy-duty wheel roller swing gate motor
- Maximum compatible gate weight: up to 800 KG
- Wheel-driven automatic gate operation
- Motor assembly mounted directly to the gate leaf
- Automatic opening and closing
- Suitable for compatible single and double swing gates
- Practical alternative to conventional linear swing gate motors
- Suitable for large and heavy swing gates
- Remote control compatible
- Photocell safety sensor compatible
- Push-button control compatible
- Access-control integration available
- GSM gate opener compatible
- RFID and keypad access-control compatible
- Suitable for residential, commercial and industrial applications
Technical Specifications
| Model | EU-WG-800 |
| Product Type | Wheel Roller Swing Gate Motor |
| Maximum Gate Weight | Up to 800 KG |
| Gate Type | Swing Gate |
| Drive Type | Wheel / Roller Drive |
| Installation Type | Gate Leaf Mounted |
| Operation | Automatic Opening & Closing |
| Remote Control | Compatible |
| Photocell Sensors | Compatible |
| Access Control | Compatible |
| GSM Gate Opener | Compatible |
| Application | Residential, Commercial & Industrial Swing Gates |
800 KG Heavy-Duty Swing Gate Capacity
This wheel roller swing gate opener is designed for compatible swing gates weighing up to 800 KG. The wheeled drive arrangement makes it particularly useful for large or heavy gates where a gate-mounted roller automation system is preferred over a traditional linear or articulated operator.
Gate weight alone should not be used to determine suitability. Gate dimensions, hinge condition, opening angle, ground surface, gate balance and the required daily operating frequency must also be considered.
How the Wheel Roller Swing Gate Motor Works
The motor assembly is mounted directly onto the swing gate leaf. A powered drive wheel contacts the ground surface and moves the gate through its opening and closing cycle.
Unlike a conventional swing gate motor that pushes or pulls the gate from the pillar, the wheel motor travels together with the gate. This provides a different mechanical approach to automating suitable heavy swing gates.
Suitable Ground Surface Is Important
Because the motor relies on the drive wheel maintaining contact with the ground, the ground surface is an important part of the installation. The wheel path should be sufficiently level, stable and suitable for consistent traction throughout the complete gate movement.
Uneven ground, severe slopes, holes or large changes in surface height can affect wheel contact and should be assessed before selecting this type of gate automation.
Gate Leaf Mounted Installation
The wheel roller motor is installed directly onto the gate leaf. Correct mounting height and wheel pressure are important to ensure that the drive wheel maintains suitable contact with the ground while allowing the gate to move freely.
The gate hinges should be correctly aligned and in good mechanical condition before the automation system is installed.

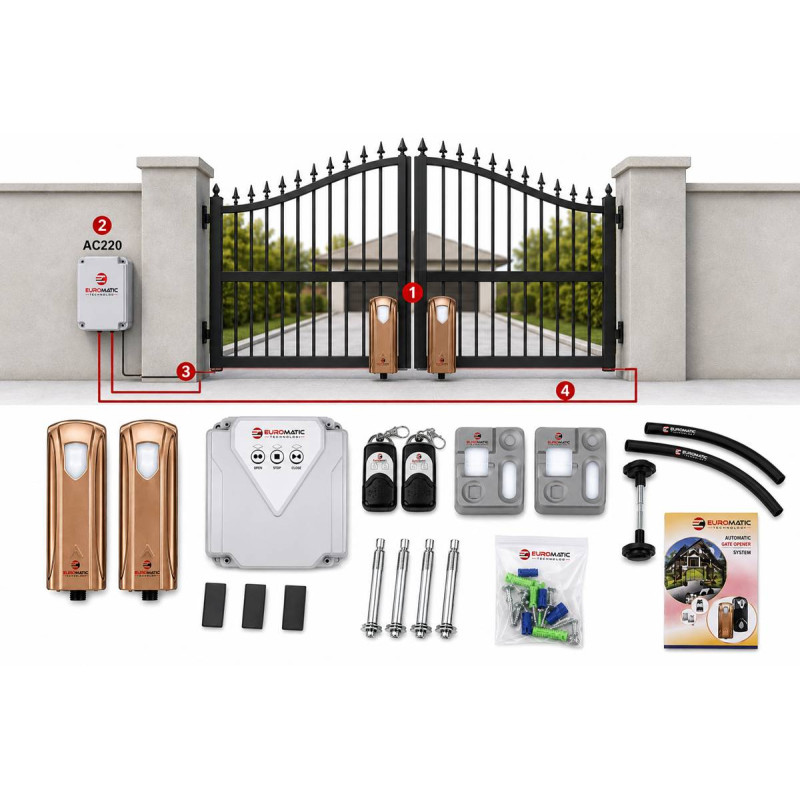

Single & Double Swing Gate Automation
The wheel roller system can be used on compatible single-leaf or double-leaf swing gates. For a double swing gate installation, one suitable motor is normally installed on each automated gate leaf and connected to the compatible control system.
The exact number of motors and required control equipment depends on the gate configuration.
Remote Control Gate Opening
The wheel roller swing gate motor can be connected to a compatible control system for convenient remote-controlled opening and closing.
Depending on the selected controller, the system can support compatible gate remotes and additional wired or wireless access devices.
Photocell Safety Sensor Integration
Compatible photocell safety sensors can be installed to help detect people, vehicles or other obstacles within the gate operating area.
The exact safety response depends on the control-panel configuration. Professional safety assessment and correct sensor positioning are recommended for every automatic swing gate installation.
GSM & Mobile Gate Access
A compatible GSM gate opener can be connected to the control system where supported, allowing authorized users to operate the automatic gate using a mobile phone.
This can be particularly useful for villas, residential compounds, commercial premises, warehouses and staff entrances.
Access Control Integration
The 800 KG wheel roller swing gate system can be integrated with compatible access-control equipment depending on the selected control panel and project requirements.
- Remote controls
- Photocell safety sensors
- Push buttons
- GSM gate openers
- RFID card readers
- Access-control keypads
- UHF long-range RFID vehicle readers
- Wi-Fi gate controllers
- Intercom systems
Wheel Roller Motor vs Conventional Swing Gate Motor
| Feature | Wheel Roller Motor | Conventional Swing Motor |
|---|---|---|
| Drive Method | Ground Wheel / Roller | Linear or Articulated Arm |
| Motor Position | Mounted on Gate Leaf | Normally mounted near pillar |
| Ground Contact | Required | Not normally required |
| Suitable Application | Compatible large/heavy swing gates | Standard swing gate installations |
Applications
- Villa entrance swing gates
- Large residential gates
- Commercial swing gates
- Warehouse entrance gates
- Factory gates
- Industrial swing gates
- Office building entrances
- Residential compounds
- Private property gates
- Automatic vehicle entrances
Wheel Roller Swing Gate Motor Installation UAE
Professional installation is particularly important for a wheel roller swing gate opener. Before installation, the gate weight, leaf dimensions, hinges, opening angle and complete wheel travel path should be inspected.
The ground should provide reliable wheel contact throughout the opening and closing movement. The motor should not be used to compensate for a gate that is mechanically difficult to move.
Wheel Roller Swing Gate Motor 800 KG UAE
We supply 800 KG wheel roller swing gate motors throughout the UAE for suitable residential, commercial and industrial swing gate automation projects.
Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the gate weight, gate leaf length, number of gate leaves, opening angle, ground condition and site layout to ensure the wheel roller motor is suitable for your installation.
