NICE SPIN BUS Garage Door Motor in UAE

NICE SPIN BUS

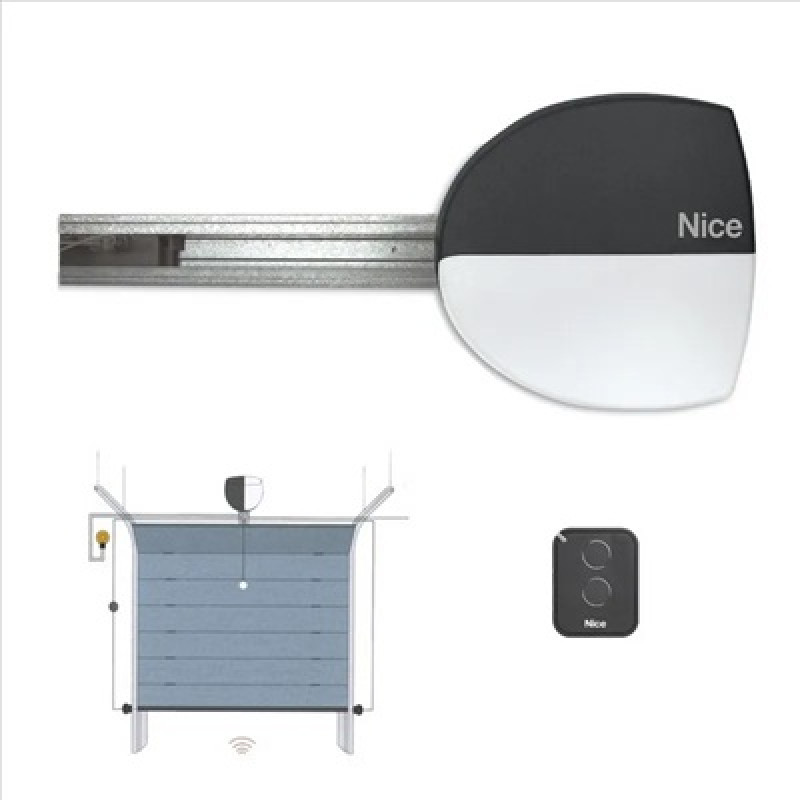

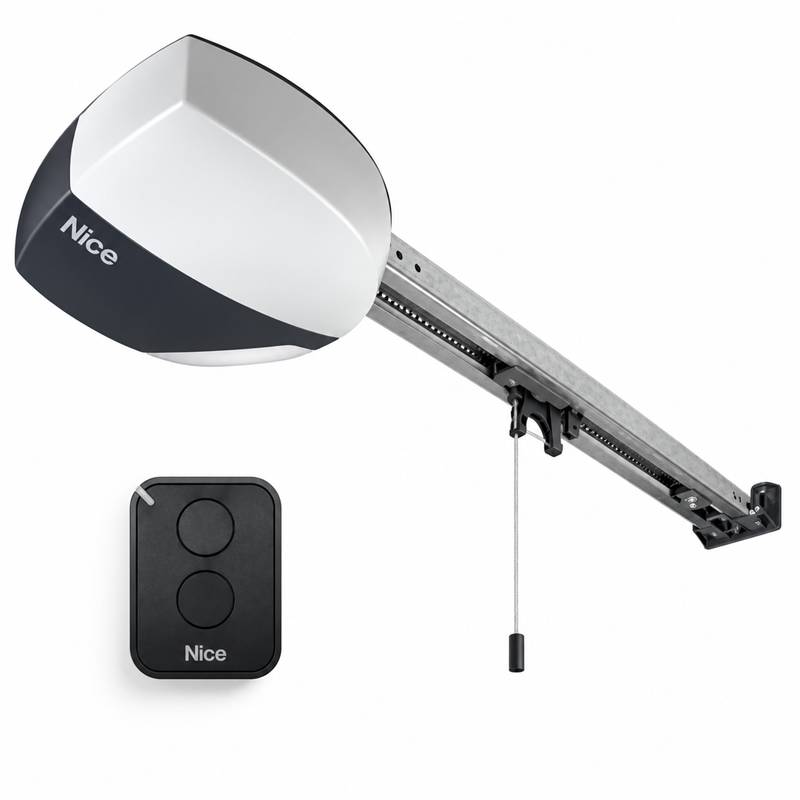

NICE SPIN BUS Garage Door Motor in UAE

• SPIN22BDKCE

• Kit for automating sectional doors with belt drive.

• Recommended for sectional garage doors up to 10.5 m2 and up to 3.4 m high.

• The guide rail with belt ensures quiet and reliable operation.

• force 650N

• built-in control unit with BLUEBUS technology,

• allowing you to connect additional devices with just two wires without polarity

• The amperometric obstacle detection system is used to detect possible

• obstacles that may occur during the normal movement of the gate.

• With this function, in case of an obstacle,

• the drive will stop the leaf and reverse the direction.

• electronic speed control - adjustable acceleration and deceleration,

• adjustable at the beginning and end of the maneuver

• when the system is not in use, the drive goes into standby mode,

• which reduces power consumption

Description:

• For sectional doors up to 12.5m² and up-and-over garage doors up to 11.2m²

• Nice BlueBUS technology.

• 230Vac irreversible electromechanical gear motor,

• for residential use, with belt drive, 24Vdc motor with magnetic encoder.

• Complete with track in 3x1m pieces.

Technical Data:

• Power Supply: 230 Vac 50 Hz

• Motor Voltage: 24Vdc

• Battery backup option: Yes

• Force (N): 800N

• BlueBUS technology: Yes

• Solar Power Option: Yes

• Work Cycle: 50 Cycles/Day

• IP rating: 40

• Operating Limits

• Up and Over Door – Height: 2.2m   Width: 3m

• projecting up-and-over door – Height: 2.8m   Width: 3m

• Sectional – Height: 2.5m   Width: 3.5m.

Advantages of the Spin22 model:
