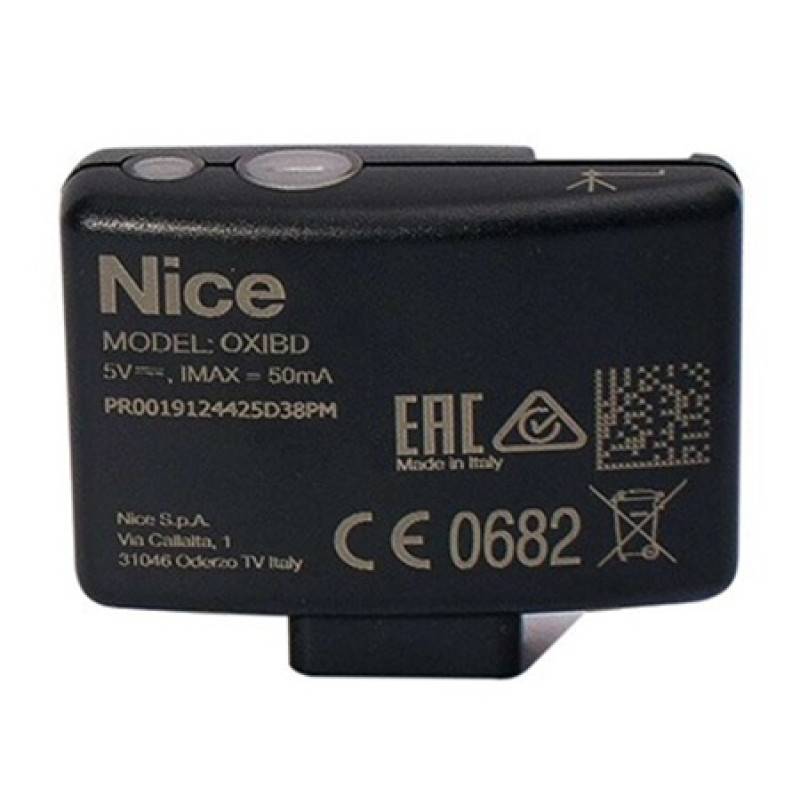

NICE OXIBD 433.92MHz Bidirectional Radio Receiver

NICE OXIBD 433.92MHz Bidirectional Gate Radio Receiver UAE

NICE OXIBD is an original Nice 433.92 MHz bidirectional plug-in radio receiver designed for compatible Nice automatic gate, garage door and access automation control units. Part of the Nice Opera radio system, OXIBD provides advanced two-way communication when used with compatible Nice bidirectional transmitters while maintaining support for several established Nice radio coding systems.

The OXIBD connects directly to compatible Nice control units through the SM plug-in connector and provides 4 outputs. It supports BD, O-Code, FloR, TTS, Flo and Smilo decoding, making it a highly flexible receiver for compatible Nice automation installations.

NICE OXIBD Key Features

• Original Nice bidirectional radio receiver
• Model: OXIBD
• Receiver type: Bidirectional / Two-Way
• Reception frequency: 433.92 MHz
• Transmission frequency: 433.92 MHz – BD mode
• Plug-in connection: Nice SM connector
• Number of outputs: 4
• Supports BD coding
• Supports O-Code
• Supports FloR
• Supports TTS
• Supports Flo
• Supports Smilo
• Input impedance: 50 Ω
• Receiver sensitivity: -108 dBm
• Power supply: 5V DC
• Maximum current consumption: 50 mA
• Protection rating: IP30
• Compatible with selected Nice control units equipped with an SM receiver connector

NICE OXIBD Technical Specifications

433.92MHz Nice Gate Receiver

The NICE OXIBD operates on the widely used Nice 433.92 MHz radio frequency. It receives commands from compatible Nice transmitters and, when operating with compatible BD devices, can also provide bidirectional radio communication.

This two-way communication capability allows compatible Nice bidirectional transmitters and automation systems to exchange information rather than operating only as a conventional one-way remote-control system.

Bidirectional Radio Communication

One of the main advantages of OXIBD is its bidirectional technology. With compatible Nice BD transmitters, communication is possible in both directions between the transmitter and receiver.

This makes OXIBD particularly suitable for modern Nice automation systems where bidirectional radio functionality is required.

Multiple Nice Radio Coding Support

The NICE OXIBD is highly flexible because it supports several Nice radio coding technologies:

• BD
• O-Code
• FloR
• TTS
• Flo
• Smilo

This broad decoding support makes OXIBD useful when upgrading or maintaining compatible Nice automation installations that use different generations of Nice remote-control technology.

Nice SM Plug-In Receiver

The OXIBD is designed with a Nice SM plug-type connector. On compatible Nice control boards, the receiver plugs directly into the dedicated radio-receiver socket without requiring a separate external receiver enclosure.

Important: Not every Nice control board uses the same receiver connection. Always check that the installed control unit has a compatible Nice SM receiver connector before ordering.

4-Output Radio Receiver

The NICE OXIBD provides 4 outputs through its SM plug-in connector. The available radio commands and their functions depend on the compatible Nice control unit and how the transmitter is programmed.

Typical automation commands can include step-by-step gate operation, pedestrian opening or other supported functions depending on the control panel.

NICE OXIBD Compatible Remote Controls

The OXIBD can operate with various compatible Nice transmitter families according to the coding technology used. These can include compatible transmitters from Nice radio families such as:

• Nice ERA ONE BD
• Nice MYGO BD
• Compatible Nice O-Code transmitters
• Nice ERA ONE
• Nice ERA INTI
• Nice ERA FLOR
• Compatible FloR transmitters
• Compatible Flo transmitters
• Compatible Smilo transmitters

Compatibility Note: Remote compatibility depends on the transmitter model, coding system, receiver programming and automation configuration. Operating at 433.92 MHz alone does not guarantee compatibility.

NICE OXIBD Receiver Memory

The OXIBD provides substantial transmitter storage capacity for compatible Nice automation systems. Nice specifies capacity for up to approximately 750 bidirectional transmitters or up to 1024 unidirectional transmitters, depending on the transmitter type and memorisation method.

The actual available capacity can depend on how transmitters and functions are stored in the receiver.

OXIBD Signal Repeater Function

In compatible Nice Opera installations, the OXIBD can also be configured to participate in radio-code repetition. This function can help extend communication between compatible bidirectional receivers when the installation and programming support this feature.

The repeater function requires the appropriate Nice system configuration and is not simply an automatic range extender when the receiver is plugged in.

Compatible Nice Control Units

The NICE OXIBD is used with compatible Nice control units equipped with the appropriate plug-in receiver connection. Depending on the automation system, examples can include compatible control units used with Nice sliding gates, swing gates, garage doors and other automation products.

Always confirm the exact control-board model before ordering because receiver compatibility depends on the installed Nice control unit.

NICE OXIBD Applications

• Nice sliding gate motors
• Nice swing gate motors
• Nice garage door automation
• Nice automatic gate control panels
• Residential gate automation
• Commercial gate automation
• Additional remote-control users
• Replacement Nice radio receiver
• Upgrade to compatible bidirectional Nice radio controls

NICE OXIBD vs Standard One-Way Receiver

NICE OXIBD Radio Receiver UAE

We supply NICE OXIBD 433.92 MHz bidirectional radio receivers throughout the UAE for compatible Nice automatic gate, garage door and access automation systems.

Supply, installation, remote programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send us the model number or a photo of your Nice control board and existing remote control so the correct receiver and radio compatibility can be checked.
