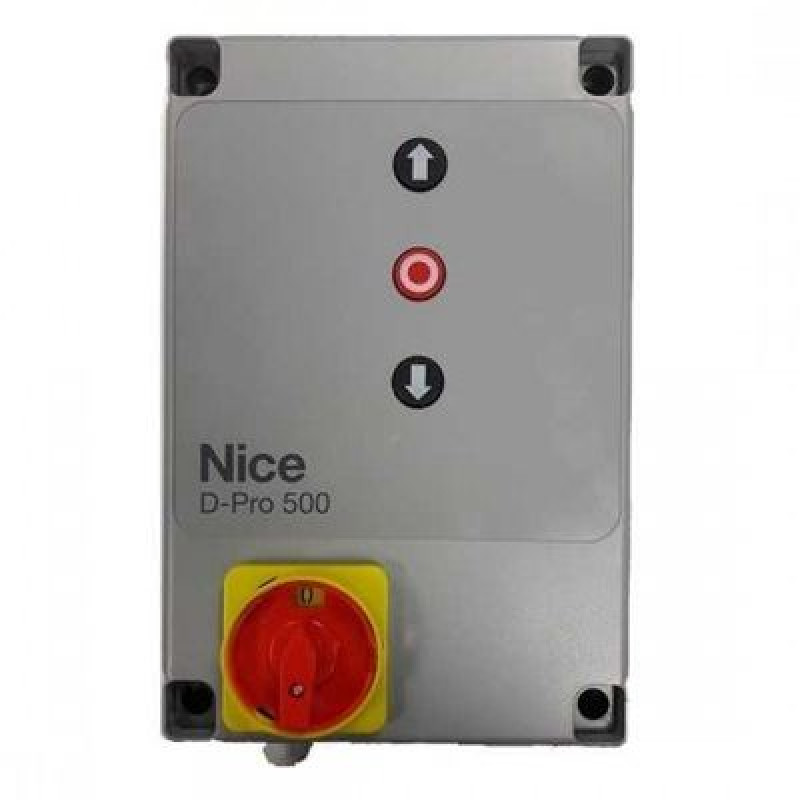

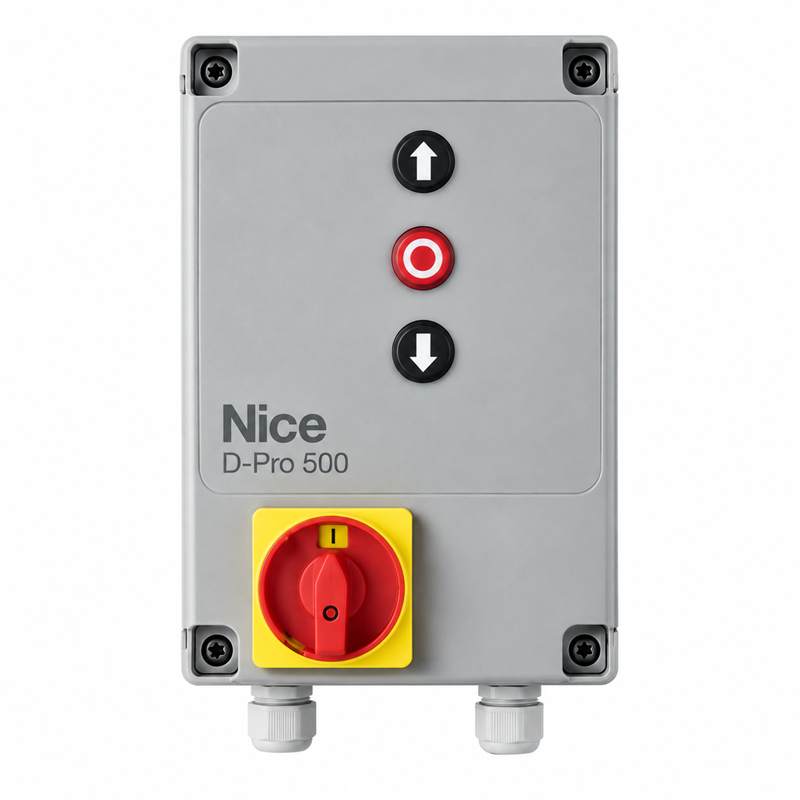

Nice D-PRO 500 Industrial Gate & Door Control Unit

Nice D-PRO 500 Industrial Gate, Shutter & Door Control Unit UAE

Nice D-PRO 500 (DPRO500) is a professional industrial control unit for automatic gates, sectional doors and rolling shutters. It is designed to control compatible electromechanical motors equipped with mechanical or electronic limit switches and supports both 230V AC single-phase and 400V AC three-phase motor applications with a maximum motor power of 2.2 kW.

The D-PRO 500 offers flexible programmable inputs, automatic and deadman operating modes, safety-device integration, a dedicated Nice plug-in radio receiver slot and compatibility with the Nice Opera system. Its IP55 protected enclosure makes it suitable for professional commercial and industrial automation installations.

Nice D-PRO 500 Key Features

• Original Nice D-PRO 500 control unit
• Model / Code: DPRO500
• Designed for gates, sectional doors and shutters
• Supports 230V AC single-phase motors
• Supports 400V AC three-phase motors
• Maximum motor power: 2.2 kW
• Compatible with mechanical and electronic limit switches
• Automatic and deadman operation
• 24V DC logic/control supply
• Programmable wired control inputs
• Programmable pre-limit input
• STOP input for normally closed contact
• Supports optical safety edges
• Supports 8.2 kΩ resistive safety edges
• Supports 8.2 kΩ pneumatic safety edges
• Dedicated slot for Nice plug-in radio receiver
• Compatible with Nice Opera
• O-View programming support with optional IBT4N interface
• Optional programmable potential-free outputs
• Programmable maintenance/service warning
• Diagnostic LEDs for easier troubleshooting
• Protection rating: IP55

Nice DPRO500 Technical Specifications

230V Single-Phase & 400V Three-Phase Motor Control

The Nice D-PRO 500 provides a flexible solution for industrial automation because the control unit can operate compatible 230V single-phase or 400V three-phase motors with maximum power up to 2.2 kW.

This makes the DPRO500 suitable for a wide range of professional gate, industrial door and rolling shutter automation applications where a robust external control unit is required.

For Motors with Mechanical or Electronic Limit Switches

The DPRO500 is designed for compatible motors using mechanical or electronic limit switches. The controller manages opening and closing movement according to the motor and limit-switch configuration.

Correct wiring and programming must be carried out according to the Nice DPRO500 installation manual and the specifications of the connected motor.

Automatic & Deadman Operation

The Nice D-PRO 500 supports both automatic and deadman operating modes. This provides installation flexibility for different types of industrial doors, shutters and gate automation systems.

The appropriate operating mode should be selected according to the automation, installed safety devices and site safety requirements.

Industrial Door & Rolling Shutter Control Unit

The D-PRO 500 is particularly suitable for professional automation applications such as industrial sectional doors, rolling shutters and compatible automatic gates.

With support for motors up to 2.2 kW, programmable inputs and multiple safety-device options, it provides the control functions required for many commercial and industrial entrances.

Advanced Safety Edge Compatibility

The DPRO500 supports several common safety-edge technologies, including optical safety edges, 8.2 kΩ resistive edges and 8.2 kΩ pneumatic edges.

This flexibility allows the controller to be integrated with appropriate safety systems according to the type of industrial door or gate being automated.

Nice Radio Remote Control Compatibility

The D-PRO 500 includes a dedicated slot for installing a compatible Nice plug-in radio receiver. This allows the automation to be operated using compatible Nice remote controls when the appropriate receiver is installed.

Important: The radio receiver is not necessarily built into the DPRO500 itself. Compatibility depends on the receiver installed in the dedicated slot.

Nice O-View Programming

The DPRO500 can be programmed and diagnosed using the optional Nice O-View programming unit through the compatible IBT4N interface.

This provides professional installers with additional access to configuration and diagnostic functions for commissioning and maintenance.

Programmable Maintenance Warning

The Nice D-PRO 500 includes a programmable service and maintenance warning based on the number of completed manoeuvres. This is useful for commercial and industrial installations where preventive maintenance intervals need to be monitored.

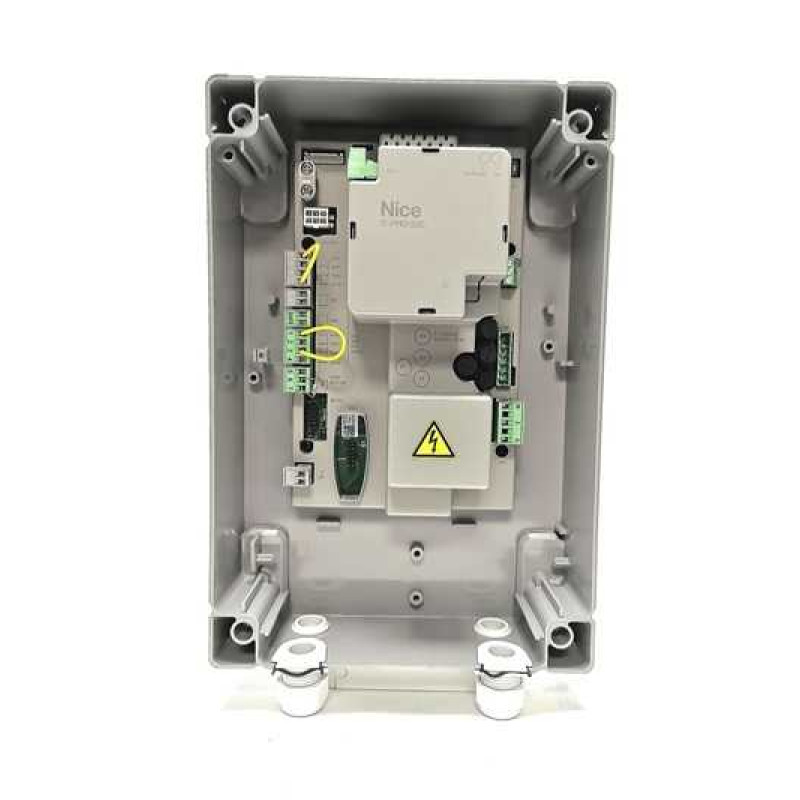

IP55 Protected Industrial Enclosure

The DPRO500 control unit has an IP55 protection rating and is housed inside a protective enclosure designed to reduce exposure to dust and water ingress under the specified installation conditions.

The specified operating temperature range is -20°C to +50°C.

Nice D-PRO 500 Optional Accessories

• IBT4N – Interface for connecting the Nice O-View programmer
• NDA040 – Module for optional programmable potential-free outputs
• Compatible Nice plug-in radio receiver
• Compatible Nice remote controls
• Photocell safety sensors
• Safety edges
• Push buttons
• Key switches
• Emergency stop devices

Nice D-PRO 500 Applications

• Industrial sectional doors
• Commercial rolling shutters
• Industrial rolling shutters
• Automatic gates with compatible motors
• Warehouse entrances
• Factory doors
• Loading bay entrances
• Commercial building entrances
• Single-phase motor automation
• Three-phase motor automation

Nice D-PRO 500 Control Unit UAE

We supply Nice D-PRO 500 industrial control units throughout the UAE for compatible automatic gates, sectional doors and rolling shutter motors.

Supply, installation, programming, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the motor voltage, single-phase or three-phase configuration, motor power, limit-switch type and required safety accessories to ensure the Nice DPRO500 is suitable for your automation system.
