MARANTEC Special 630 Garage Door Photocell Sensors

MARANTEC Special 630 8m Garage Door Photocell Sensors UAE

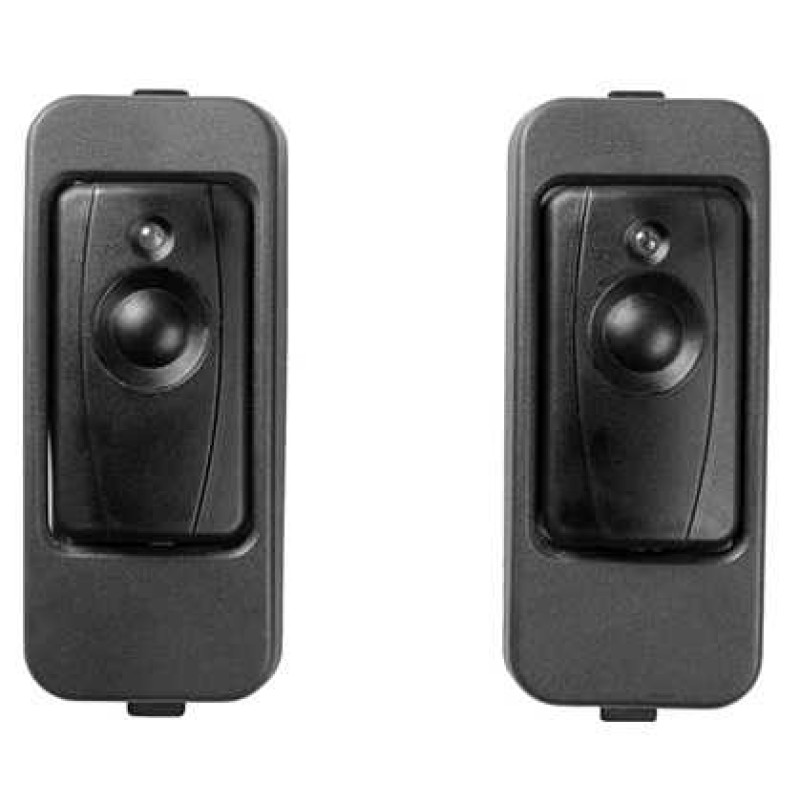

MARANTEC Special 630 is an original through-beam photocell safety sensor designed to protect people, vehicles and property around compatible automatic garage doors and door automation systems. The photocell uses a separate transmitter and receiver to create an optical safety beam across the door opening with an operating range of up to 8 metres.

The Special 630 operates on 24V DC and uses MARANTEC's convenient 2-wire technology, allowing power supply, signal transmission and testing through only two polarity-reversal-protected wires. With IP54 protection, LED status indication and two supplied 10-metre connection cables, it provides a professional safety solution for compatible MARANTEC automation systems.

MARANTEC Special 630 Key Features

• Original MARANTEC photocell safety sensor
• Model: Special 630
• Product code: 88176
• Through-beam / one-way photocell system
• Separate transmitter and receiver
• Operating range: 1 to 8 metres
• Maximum range: 8 metres
• Operating voltage: 24V DC
• Simple 2-wire connection technology
• Supply, signal and testing through two wires
• Polarity-reversal-protected connection
• LED function indication
• LED contamination indication
• Protection rating: IP54
• Compact dimensions: 27 × 64.5 × 19 mm
• Includes 2 × 10 metre connection cables
• Suitable for compatible MARANTEC 2-wire photocell inputs
• Designed to protect people and property

MARANTEC Special 630 Technical Specifications

8 Metre Garage Door Safety Photocell

The MARANTEC Special 630 provides an optical safety beam with a specified operating distance from 1 metre up to 8 metres. The transmitter and receiver are installed opposite each other so that the infrared beam passes across the garage door or automatic entrance.

If a person, vehicle or object interrupts the beam during door operation, the photocell sends the appropriate safety signal to the compatible control system.

Automatic Stop & Reverse Protection

When correctly connected and programmed with a compatible garage door controller, interruption of the Special 630 safety beam during closing can cause the automatic door to stop and reverse.

This provides an additional optical safety layer to help protect vehicles, people and objects from a closing automatic garage door.

MARANTEC 2-Wire Photocell Technology

A major advantage of the Special 630 is its 2-wire connection technology. MARANTEC combines the power supply, signal and testing functions through only two connectable wires.

The connection is protected against polarity reversal, simplifying wiring compared with photocell systems that require multiple separate power and relay connections.

24V DC Photocell Sensor

The standard MARANTEC Special 630 operates at 24V DC and is intended for compatible controllers providing a connection for 2-wire light barriers.

Always check the garage door control board before connection. The Special 630 should be connected to the designated compatible photocell input rather than assuming compatibility with a conventional relay-type photocell terminal.

LED Function & Contamination Indication

The Special 630 incorporates LED indication to assist with installation, operation and maintenance. MARANTEC specifies LED signalling for both photocell function and contamination status.

This can help technicians identify alignment or sensor-condition problems during troubleshooting and routine garage door maintenance.

IP54 Protection

The MARANTEC Special 630 has an IP54 protection rating. Its compact housing is designed for professional door automation safety installations when mounted according to the manufacturer's requirements.

Compact Photocell Design

The standard Special 630 model 88176 measures only 27 × 64.5 × 19 mm. Its compact dimensions allow discreet installation around automatic garage door entrances.

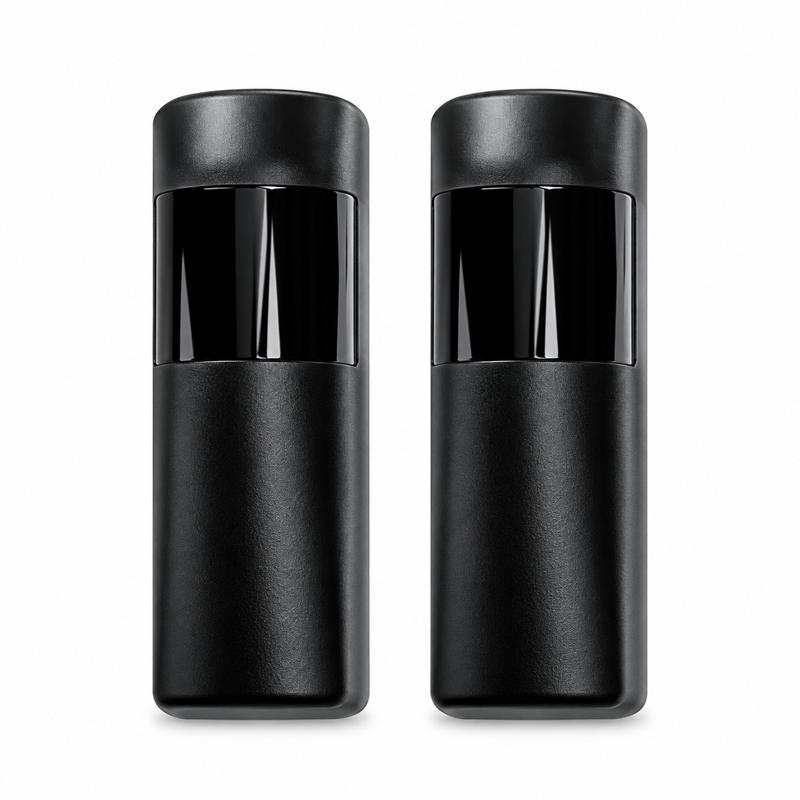

The sensors can also be installed in compatible MARANTEC CH-51N and CH-101N photocell columns where a dedicated pedestal installation is required.

MARANTEC Special 630 Scope of Delivery

• 1 × Special 630 transmitter photocell
• 1 × Special 630 receiver photocell
• 2 × 10 metre connection cables
• 4 × Cable connectors
• Installation material

MARANTEC Special 630 Compatible Applications

• Automatic garage doors
• Sectional garage doors
• Overhead garage doors
• Up-and-over garage doors
• Residential garage automation
• Villa garage doors
• Commercial automatic doors
• Compatible MARANTEC door control systems
• Controls with compatible 2-wire photocell inputs

MARANTEC Special 630 Installation

The transmitter and receiver should be installed opposite each other at an appropriate safety height so that the optical beam covers the required detection area across the door opening.

Correct positioning, wiring and controller programming are essential. The photocells should be tested after installation to confirm that interrupting the beam produces the required safety response from the garage door operator.

Replacement MARANTEC Special 630 Photocells

The Special 630 can be used as a replacement safety photocell where the existing MARANTEC controller supports the appropriate 24V DC 2-wire light-barrier system.

Before ordering, check the existing photocell model, controller and wiring system. A conventional multi-wire relay photocell should not automatically be assumed to be interchangeable with the MARANTEC 2-wire Special 630.

MARANTEC Special 630 Photocell Sensors UAE

We supply MARANTEC Special 630 garage door photocell sensors throughout the UAE for compatible residential and commercial garage door automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm that your MARANTEC garage door controller provides a compatible 24V DC 2-wire photocell connection. If you are unsure, check the control board model before purchasing.
