MARANTEC M3-543NL Garage Door Wall Control Panel
Price 250 AEDIn Stock
MARANTEC M3-543NL Garage Door Wall Control Panel UAE

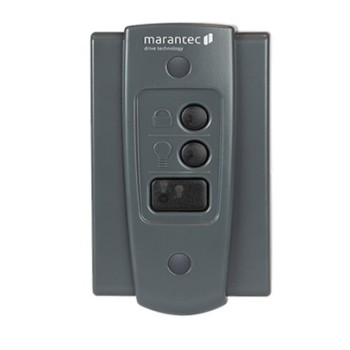

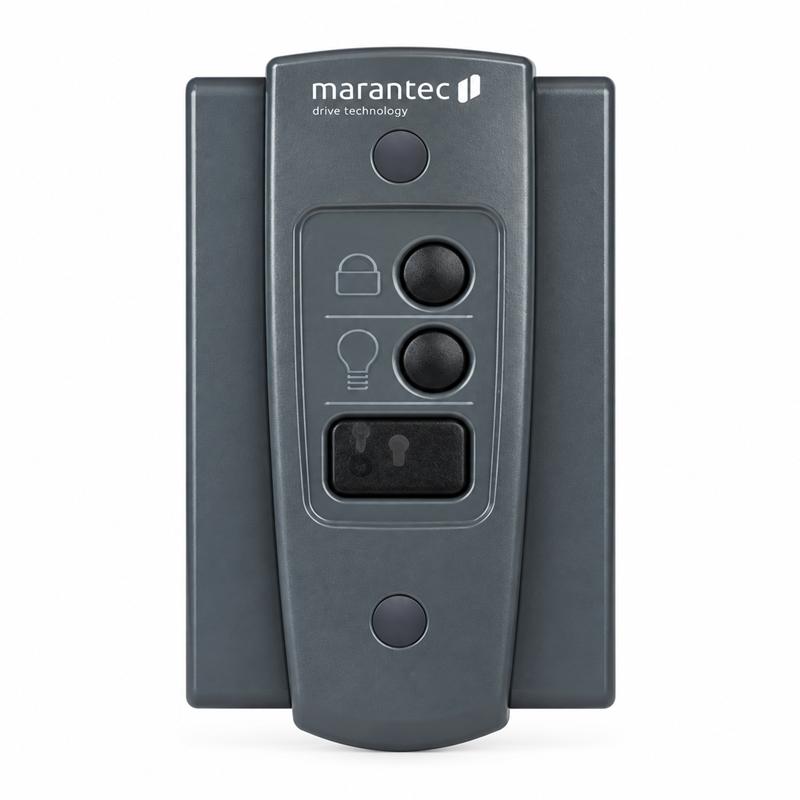

MARANTEC M3-543NL is a hardwired 3-function garage door wall control panel designed for compatible MARANTEC garage door opener systems. Installed inside the garage, the wall station provides convenient control of the garage door, opener lighting and vacation lock function from one compact control panel.
Unlike a wireless remote control, the M3-543NL connects directly to the compatible garage door opener through low-voltage wiring. This provides a reliable permanently installed control point for everyday garage door operation.
MARANTEC M3-543NL Key Features
- Original MARANTEC garage door wall control panel
- Model: M3-543NL
- Part number: 89463
- 3-function wall control station
- Garage door Open / Close control
- Manual garage opener Light On / Off control
- Vacation Lock security function
- Illuminated push buttons
- Hardwired low-voltage connection
- No remote-control battery required
- Designed for indoor garage installation
- Fits compatible standard electrical wall boxes
- Suitable as a replacement wall control on compatible MARANTEC systems
MARANTEC M3-543NL Technical Specifications
| Brand | MARANTEC |
| Model | M3-543NL |
| Part Number | 89463 |
| Product Type | Garage Door Wall Control Panel |
| Control Type | Hardwired Wall Station |
| Number of Functions | 3 |
| Door Control | Open / Close |
| Light Control | Manual On / Off |
| Security Function | Vacation Lock |
| Button Illumination | Yes |
| Connection | Low-Voltage Hardwired |
| Installation | Indoor Wall Mount |
| Application | Compatible MARANTEC Garage Door Openers |
3-Function Garage Door Wall Control
The MARANTEC M3-543NL provides three important garage door functions from one convenient indoor wall station. The main control button operates the automatic garage door, while separate controls are provided for the opener light and vacation lock function.
This makes the M3-543NL more useful than a basic single-function push button, particularly for residential garages where the user wants convenient control of the complete garage door opener system.
Garage Door Open & Close Control
The main button on the M3-543NL is used to operate the connected automatic garage door opener. Depending on the compatible opener's operating logic, the wall control provides convenient everyday door operation from inside the garage.
Because the wall station is hardwired to the opener, no handheld transmitter is required when operating the garage door from the wall control.
Garage Door Opener Light Control
The M3-543NL includes a dedicated light control button. This allows the user to manually switch the compatible MARANTEC garage door opener light on or off without operating the garage door.
This is useful when additional lighting is required inside the garage without opening or closing the door.
Vacation Lock Security Function
The Vacation Lock function is designed to disable compatible radio transmitter operation through the garage door opener while the lock mode is active.
This function is useful when the property will be unattended for an extended period. The exact lock behaviour depends on the connected compatible MARANTEC opener.
Illuminated Wall Push Buttons
The MARANTEC M3-543NL uses illuminated control buttons, making the wall station easier to locate and operate inside a garage, particularly in low-light conditions.
Hardwired Garage Door Wall Station
The M3-543NL is a hardwired wall control, not a wireless remote transmitter. It connects to the appropriate low-voltage wall-control terminals on a compatible MARANTEC garage door opener.
This means the wall station does not require a radio frequency or replaceable remote-control battery for normal operation.
MARANTEC M3-543NL vs Remote Control
| Feature | M3-543NL | Hand Remote |
|---|---|---|
| Connection | Hardwired | Wireless Radio |
| Installation | Fixed to Garage Wall | Portable |
| Battery Required | No | Yes |
| Door Control | Yes | Yes |
| Dedicated Light Control | Yes | Model Dependent |
| Vacation Lock | Yes | No |
Replacement MARANTEC Wall Control Panel
The M3-543NL can be used as a replacement wall control panel when the existing garage door opener supports this MARANTEC wall station.
Before replacing an existing wall button, check the garage door opener model and wall-control connection. Similar-looking MARANTEC garage door openers may use different control systems.
MARANTEC M3-543NL Compatibility
The M3-543NL is designed for compatible MARANTEC garage door opener systems using the appropriate hardwired wall-control connection.
Important: Do not select this wall station only because the garage door motor is branded MARANTEC. Confirm the exact opener model and wall-control terminals before ordering.
MARANTEC M3-543NL Applications
- Residential automatic garage doors
- Villa garage door openers
- Sectional garage door automation
- Overhead garage door systems
- Replacement garage wall controls
- Indoor garage door control stations
- Compatible MARANTEC garage door openers
MARANTEC M3-543NL Wall Control Panel UAE
We supply MARANTEC M3-543NL garage door wall control panels throughout the UAE for compatible MARANTEC garage door automation systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Please confirm the exact model of your MARANTEC garage door opener. The M3-543NL is a model-specific hardwired wall control and should not be assumed compatible with every MARANTEC opener.
