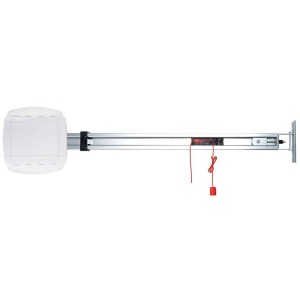

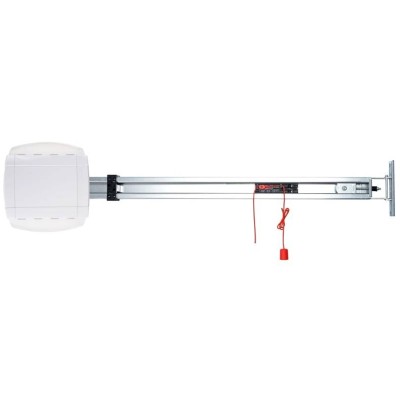

MARANTEC COMFORT 370 850N Garage Door Opener

MARANTEC COMFORT 370 850N Garage Door Opener UAE

MARANTEC COMFORT 370 is a fast and powerful 850N automatic garage door opener designed for residential sectional, overhead, up-and-over and compatible canopy garage doors. Featuring a 24V DC motor, maximum running speed of 23.5 cm/s and capacity for garage doors weighing up to 185 kg, the Comfort 370 provides smooth and reliable automatic garage door operation.

The Comfort 370 is suitable for compatible sectional garage doors up to 5.5 metres wide and overhead, up-and-over or canopy doors up to 5 metres wide. Soft start and soft stop, adjustable opening and closing speeds, electronic programming and integrated LED lighting make it an excellent solution for modern villa and residential garage automation.

MARANTEC COMFORT 370 Key Features

• Original MARANTEC garage door opener
• Model: COMFORT 370
• Maximum push and pull force: 850 N
• Maximum garage door weight: 185 kg
• Maximum sectional door width: 5.5 metres
• Maximum overhead / canopy door width: 5 metres
• Maximum tilt / canopy door height: 2.25 metres
• Maximum running speed: 23.5 cm/s
• Fast opening time of approximately 9 seconds, door dependent
• Mains supply: 230V AC, 50/60Hz
• Motor voltage: 24V DC
• Maximum cycles per hour: 4
• Maximum cycles per day: 32
• Soft start and soft stop
• Separately adjustable opening and closing speeds
• Electronic travel control
• Integrated control unit
• Illuminated LC programming display
• 2 × 10 LED integrated garage lighting
• Obstacle protection through current monitoring
• Connection for photocell safety sensor
• Connection for wall push button
• Connection for wicket door contact
• Battery backup connection
• MS-Bus expansion capability
• IP20 motor protection rating

MARANTEC COMFORT 370 Technical Specifications

*Opening time depends on the garage door, rail and installation configuration.

850N Powerful Garage Door Motor

The MARANTEC COMFORT 370 provides a maximum push and pull force of 850 N. It is designed for medium-to-large residential garage doors requiring more power than entry-level garage door openers while maintaining fast and smooth operation.

The motor can automate compatible garage doors weighing up to 185 kg. Door weight is only one factor when selecting an opener; door balance, springs, tracks, dimensions and mechanical resistance must also be checked before installation.

Fast 23.5 cm/s Garage Door Opener

One of the major advantages of the Comfort 370 is its speed. The operator reaches a maximum running speed of 23.5 cm/s (235 mm/s), allowing compatible garage doors to open quickly.

Marantec specifies a door-dependent opening time of approximately 9 seconds. Actual opening time varies according to the garage door height, rail length, programmed travel and installation conditions.

Garage Doors Up to 185 KG

The Comfort 370 is suitable for correctly balanced garage doors weighing up to 185 kg. This makes it an excellent choice for larger residential and villa garage door installations.

The garage door should move freely by hand before installing the motor. Damaged springs, worn rollers, misaligned tracks or excessive mechanical resistance should be repaired before automation.

Sectional Garage Doors Up to 5.5 Metres

MARANTEC specifies the Comfort 370 for compatible single-wall and double-wall sectional garage doors up to 5.5 metres wide.

For compatible overhead, up-and-over and canopy doors, the specified maximum width is 5 metres. Tilt and canopy doors can have a maximum specified height of approximately 2.25 metres.

24V DC Garage Door Motor

The MARANTEC COMFORT 370 uses a 24V DC motor powered through its integrated 230V mains control system. DC motor technology enables smooth speed control, soft starting and controlled stopping.

The operator provides separately adjustable opening and closing speeds, allowing fast opening while maintaining controlled closing operation.

Soft Start & Soft Stop

The integrated soft start and soft stop function reduces abrupt movement when the garage door starts and approaches its end positions.

This provides smoother and quieter operation while helping reduce mechanical stress on the garage door hardware, rail and drive system.

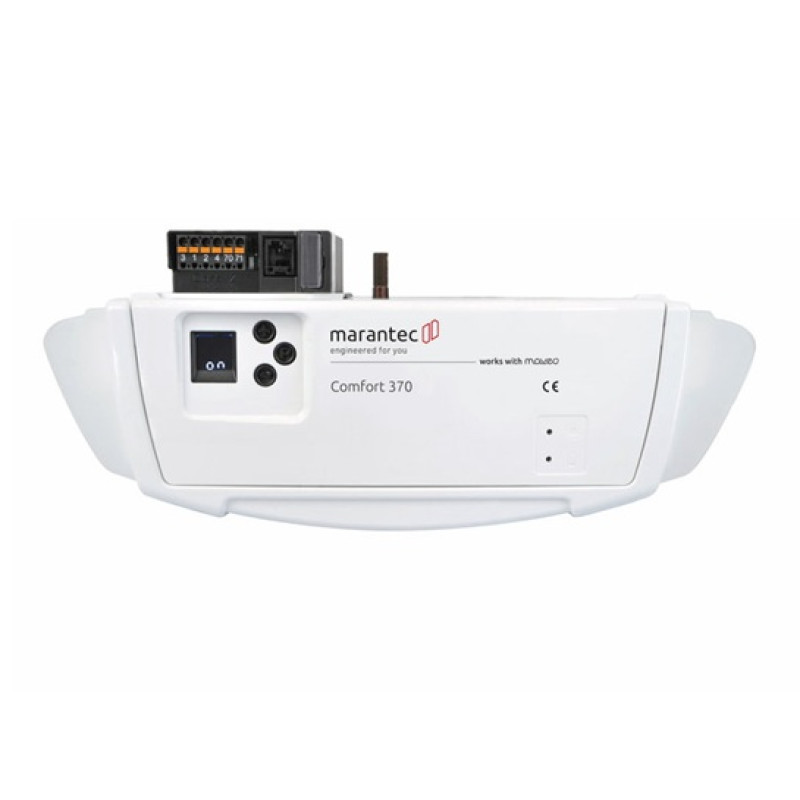

Integrated LC Display Programming

The Comfort 370 includes an integrated control unit with an illuminated LC display. Programming and status information can be accessed directly at the garage door opener.

The controller supports MARANTEC EOS programming and can also support diagnostics using compatible MARANTEC programming equipment.

Obstacle Detection Safety

The MARANTEC COMFORT 370 provides electronic overload protection by monitoring motor current consumption. When abnormal resistance is detected, the controller can respond according to its programmed safety logic.

Additional compatible safety devices such as photocells can be connected to the integrated controller where required by the installation.

2 × 10 LED Garage Lighting

The Comfort 370 incorporates two 10-LED lighting modules. The integrated lighting provides illumination around the garage entrance when the automatic door opener is operated.

MARANTEC COMFORT 370 Connections

• Wall-mounted push button
• Photocell / light barrier
• Wicket door safety contact
• Battery backup
• Plug-in radio receiver
• MS-Bus expansion boards
• MS-Bus programming and expansion modules
• 24V DC accessory output

MARANTEC COMFORT 370 bi·linked Kit

For the 183505 868 MHz bi·linked version, the current MARANTEC package includes:

• 1 × MARANTEC COMFORT 370 motor unit with integrated controller
• 1 × Digital 921 module receiver – 868 MHz bi·linked
• 1 × Digital 564 Mini transmitter – 4-channel, 868 MHz bi·linked
• 1 × Digital 572 Micro transmitter – 2-channel, 868 MHz bi·linked
• 1 × Universal installation set for up-and-over and sectional doors
• 1 × 1,500 mm mains cable with Euro Type-C plug

MARANTEC COMFORT 370 Multi-Bit Kit

The Comfort 370 is also available as the 183511 868 MHz Multi-Bit version. This version uses a different radio system and includes:

• MARANTEC COMFORT 370 motor with integrated controller
• Digital 168 module antenna – 868 MHz Multi-Bit
• Digital 382 Mini transmitter – 2-channel, 868 MHz Multi-Bit
• Digital 392 Micro transmitter – 2-channel, 868 MHz Multi-Bit
• Universal installation set
• Mains power cable

MARANTEC COMFORT 370 Applications

• Residential sectional garage doors
• Single-wall sectional doors
• Double-wall sectional doors
• Overhead garage doors
• Up-and-over garage doors
• Compatible canopy garage doors
• Villa garage doors
• Large residential garage entrances
• Garage doors up to 185 kg
• Sectional garage doors up to 5.5 m wide

MARANTEC COMFORT 360 vs 370 vs 380

The Comfort 370 is particularly attractive when opening speed is important. At up to 23.5 cm/s, it is faster than both the Comfort 360 and Comfort 380 while providing an 850N force rating and 185 kg maximum door capacity.

MARANTEC COMFORT 370 Garage Door Opener UAE

We supply MARANTEC COMFORT 370 garage door openers throughout the UAE for residential sectional, overhead, up-and-over and compatible canopy garage doors.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the garage door type, width, height, approximate weight, spring condition and required radio system to ensure the MARANTEC COMFORT 370 is suitable for your installation.
