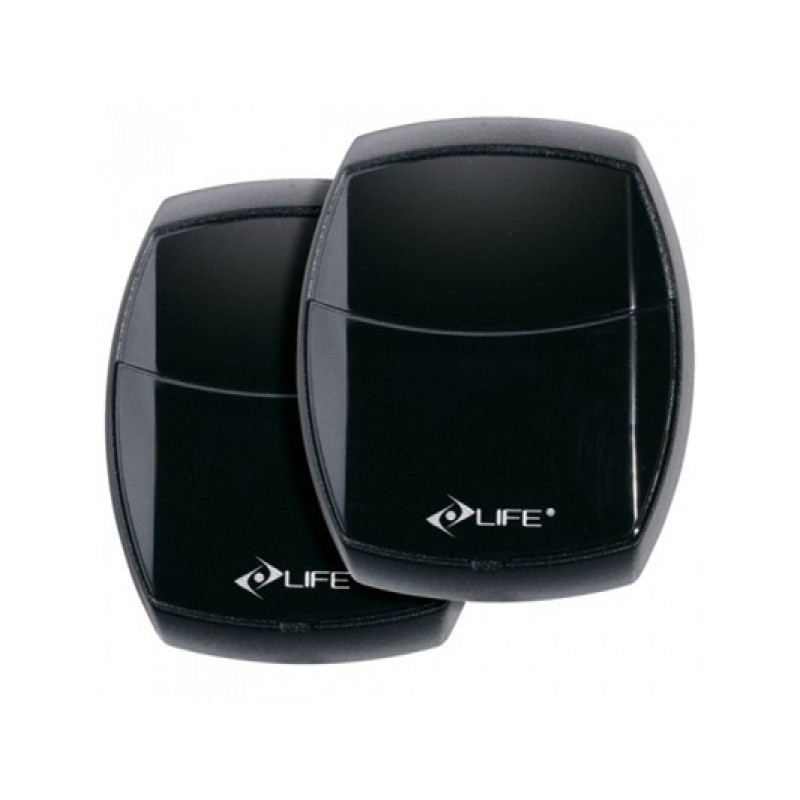

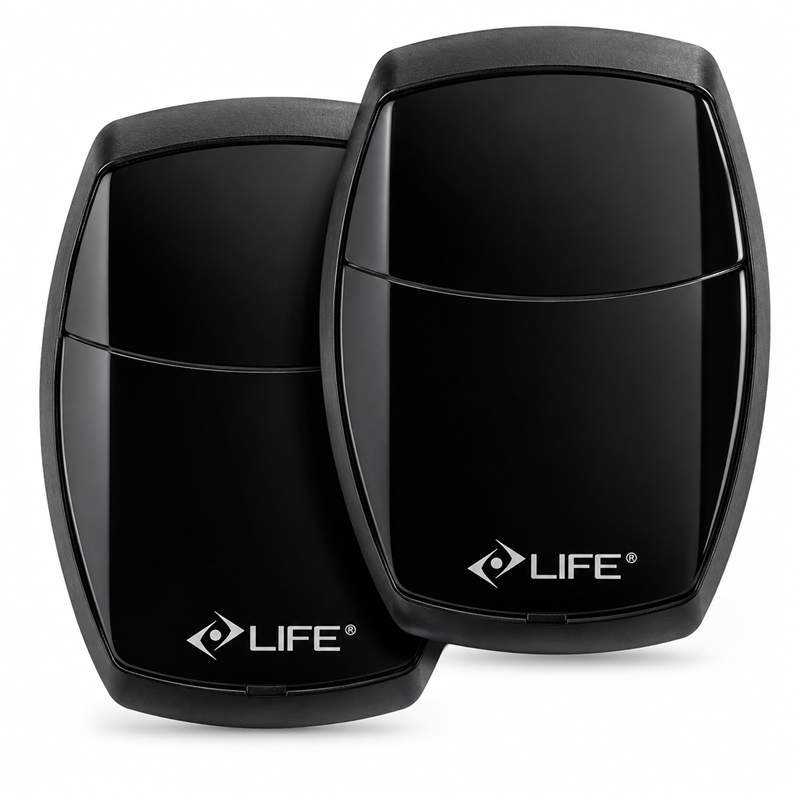

LIFE VISIO Gate Photocell Safety Sensors
Price 200 AEDIn Stock
LIFE VISIO 20M Automatic Gate Safety Photocell Sensors UAE
LIFE VISIO is a professional safety photocell system designed to detect obstacles in the movement area of automatic gates, doors, rolling shutters and parking barriers. With a maximum operating range of 20 metres and IP54 protection, LIFE VISIO provides an important safety function for residential, commercial and industrial automation systems.
The system uses a transmitter and receiver positioned across the entrance to create an infrared safety beam. When a vehicle, person or other obstacle interrupts the beam, the connected automation control system can respond according to its programmed safety logic.
LIFE VISIO Photocell Characteristics
- Automatic gate safety photocell system
- Maximum operating range: 20 metres
- 12/24V DC power supply
- Transmitter and receiver photocell system
- Relay output
- NC + NO receiver contacts
- IP54 protection rating
- Designed for outdoor gate automation applications
- Obstacle and vehicle detection
- Suitable for gates, automatic doors, shutters and barriers
- Compatible with suitable LIFE automation control systems
LIFE VISIO Technical Specifications
| Brand | LIFE Home Integration |
| Model | VISIO |
| Product Type | Safety Photocell Sensor |
| Detection Type | Transmitter / Receiver Photocell |
| Maximum Range | 20 Metres |
| Power Supply | 12/24V DC |
| Tx / Rx Consumption | 25 / 35 mA |
| Protection Rating | IP54 |
| Receiver Contact Type | NC + NO |
| Maximum Receiver Contact Rating | 1A / 24V DC |
| Operating Temperature | -20°C to +55°C |
| Application | Gates, Doors, Shutters & Parking Barriers |
| Installation | Outdoor / Gate Entrance Safety |
LIFE VISIO Key Features
- 20 metre maximum detection range
- 12/24V DC operation
- IP54 weather protection
- Transmitter and receiver safety system
- NC and NO relay contacts
- Detects vehicles, people and other obstacles crossing the safety beam
- Suitable for automatic sliding and swing gates
- Suitable for parking barrier systems
- Suitable for automatic doors and shutters
- Compact outdoor installation
How LIFE VISIO Photocell Sensors Work
The LIFE VISIO system consists of a transmitter (TX) and receiver (RX) installed opposite each other across the gate or entrance. The transmitter sends a safety beam to the receiver during normal operation.
If a person, vehicle or other obstacle interrupts the beam, the receiver changes its relay contact state. The connected gate control board then responds according to its programmed safety configuration, helping prevent unsafe gate movement.
LIFE VISIO for Sliding Gate Motors
LIFE VISIO photocells can be used with compatible LIFE automatic sliding gate systems. Typical applications include LIFE ACER gate automation where photocells are installed across the driveway to provide obstacle detection during automatic operation.
- LIFE ACER 400 KG
- LIFE ACER 600 KG
- LIFE ACER 800 KG
- LIFE ACER 1200 KG
- Compatible LIFE ACER heavy-duty models
LIFE VISIO for Swing Gate Motors
The VISIO safety photocell system is also suitable for compatible LIFE swing gate automation, including LIFE OPTIMO OP3 UNI and OP5 UNI installations. Correct photocell positioning helps protect the entrance area while the swing gates are opening or closing.
- LIFE OPTIMO OP3 UNI
- LIFE OPTIMO OP5 UNI
- Other compatible LIFE swing gate automation systems
LIFE VISIO for Parking Barriers
LIFE VISIO can also be integrated with compatible automatic parking barrier systems. The photocell beam can be positioned across the vehicle passage to detect vehicles or obstacles within the protected area.
Correct safety logic and photocell positioning should be selected according to the barrier control system and site requirements.
LIFE VISIO Installation
The transmitter and receiver should be installed opposite each other with correct alignment and an unobstructed optical path. Wiring should be connected to the appropriate power and safety terminals of the compatible automation control board.
After installation, the complete safety system should be tested to confirm that interruption of the photocell beam produces the required gate, door or barrier response.
LIFE VISIO Compatibility
LIFE VISIO is designed for LIFE automation systems but compatibility should always be confirmed according to the control-board power supply, photocell input and safety configuration. The 12/24V DC supply and relay output can also make the photocell suitable for other compatible automation controllers when correctly installed.
LIFE VISIO Photocell Sensors Supply & Installation UAE
We supply and install LIFE VISIO gate photocell sensors in UAE for compatible sliding gates, swing gates, automatic doors and parking barrier systems.
Professional installation, replacement and troubleshooting support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
