LIFE OPTIMO OP3 Swing Gate Motor

LIFE OPTIMO OP3 Automatic Swing Gate Motor UAE

LIFE OPTIMO OP3 is a professional automatic swing gate motor designed for swing gate leaves up to 3 metres. The LIFE OP3 UNI is a 230V AC irreversible electromechanical linear gate operator featuring strong mechanical construction, 2000 N thrust and fast 19-second opening to 90°.

Manufactured by LIFE Home Integration in Italy, the OPTIMO series is designed for versatile external swing gate automation. Its full aluminium construction, protected manual release system and outdoor-resistant motor coating make it suitable for residential villas, compounds and commercial entrances.

LIFE OPTIMO OP3 Characteristics

• Irreversible electromechanical gearmotor for swing gates
• External fitting / above-ground installation
• Maximum gate leaf length: 3 metres
• 230V AC motor power supply
• 2000 N maximum thrust
• Fast opening – approximately 19 seconds to 90°
• Mechanical opening and closing stops
• Protected manual release mechanism
• Full aluminium motor construction
• Outdoor-resistant polyester motor coating
• IP54 protection rating
• Made in Italy

LIFE OPTIMO OP3 UNI Technical Specifications

LIFE OPTIMO OP3 Key Features

• Automatic swing gate operator for leaves up to 3 metres
• Powerful 230V AC electromechanical motor
• 210 W motor power
• 2000 N maximum thrust
• 337 mm rod stroke
• Approximately 19 seconds to open through 90°
• 35% operating duty cycle
• IP54 protection
• Mechanical opening and closing stops
• Protected manual release mechanism
• Strong full-aluminium construction

LIFE OPTIMO OP3 UNI Complete Kit Includes

• 2 × LIFE OPTIMO OP3 UNI 230V Swing Gate Motors

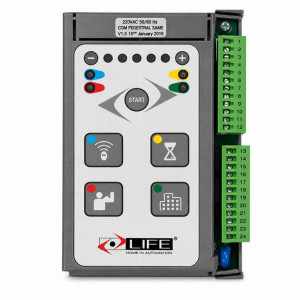

• 1 × LIFE GE UNI RS DL Control Unit with Integrated Receiver
• 2 × LIFE MAXI2 433.92 MHz Rolling Code Remote Controls
• 1 × Pair of LIFE VISIO Outdoor Photocell Sensors
• 1 × LIFE SUNLED Flashing Warning Light with Built-In Antenna
• 2 × Motor Fixing Bracket Sets
• 1 × Sign Plate

LIFE OPTIMO OP3 for Double Swing Gates

The LIFE OPTIMO OP3 kit is designed for automation of two-leaf swing gates. Two OP3 UNI linear actuators are controlled through the LIFE GE UNI RS DL control unit, while photocell sensors provide safety detection and LIFE MAXI2 rolling-code transmitters provide wireless gate control.

LIFE OPTIMO OP3 Swing Gate Applications

• Residential villa swing gates
• Double-leaf driveway gates
• Residential compounds
• Apartment and building entrances
• Office entrances
• Commercial properties
• Private parking entrances
• Access-controlled swing gates

Choosing the Correct LIFE OPTIMO Swing Gate Motor

Swing gate motor selection should consider the gate leaf length, actual leaf weight, gate construction, wind exposure, hinge condition, installation geometry and expected operating frequency. Gate leaves should move freely and correctly by hand before automation is installed.

LIFE specifically advises reducing the normal limits of use in windy locations or where the gate has a particular structural shape. Depending on the installation and gate dimensions, an electric lock may also be required.

LIFE OPTIMO Swing Gate Motor Range

The LIFE OPTIMO range provides different configurations for swing gate automation, including OP2, OP3 and OP5 series with selected 230V AC and 24V DC versions for different gate leaf lengths and operating requirements.

LIFE OPTIMO OP3 Supply & Installation UAE

We supply and install LIFE OPTIMO OP3 swing gate motors in UAE for suitable residential and commercial automatic gate applications. Service coverage includes Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct motor selection, provide the gate leaf dimensions, approximate gate weight, gate construction, pillar dimensions and site photos.
