LIFE DEUS 600 KG 24V Sliding Gate Motor

LIFE DEUS 600 KG 24V Automatic Sliding Gate Motor UAE

LIFE DEUS 600 KG is a professional 24V automatic sliding gate motor designed for gates weighing up to 600 KG. The LIFE DEUS 6 HP combines a 24V DC electromechanical motor, double encoder technology and the LIFE CT1 24VL electronic control unit for precise and reliable sliding gate automation.

The DEUS range was developed by LIFE for improved installation efficiency, reduced standby power consumption and advanced electronic gate movement control. Its double encoder system eliminates the need for conventional mechanical limit switches and provides accurate monitoring of gate movement and position. LIFE describes DEUS as a non-reversing electromechanical sliding gate gearmotor designed for above-ground installation. :contentReference[oaicite:1]{index=1}

LIFE DEUS 600 KG Characteristics

• Non-reversing electromechanical gearmotor for sliding gates
• Maximum gate leaf weight: 600 KG
• 24V DC motor
• Double encoder technology
• LIFE CT1 24VL electronic control unit
• No conventional mechanical limit switches required
• Low standby power consumption
• High 80% duty cycle
• Continuous operation up to 20 minutes
• IP55 protection rating
• Light and resistant aluminium structure
• Weather-resistant motor body for outdoor installation

LIFE DEUS 6 HP Technical Specifications

LIFE DEUS 600 KG Key Features

• Automatic sliding gate motor for gates up to 600 KG
• Efficient 24V DC gate automation
• 140 W motor power
• 400 N maximum thrust
• Maximum speed of 0.23 m/s
• Double encoder gate movement control
• High 80% duty cycle
• Up to 20 minutes continuous operation
• IP55 outdoor protection
• LIFE CT1 24VL control technology
• Low standby energy consumption

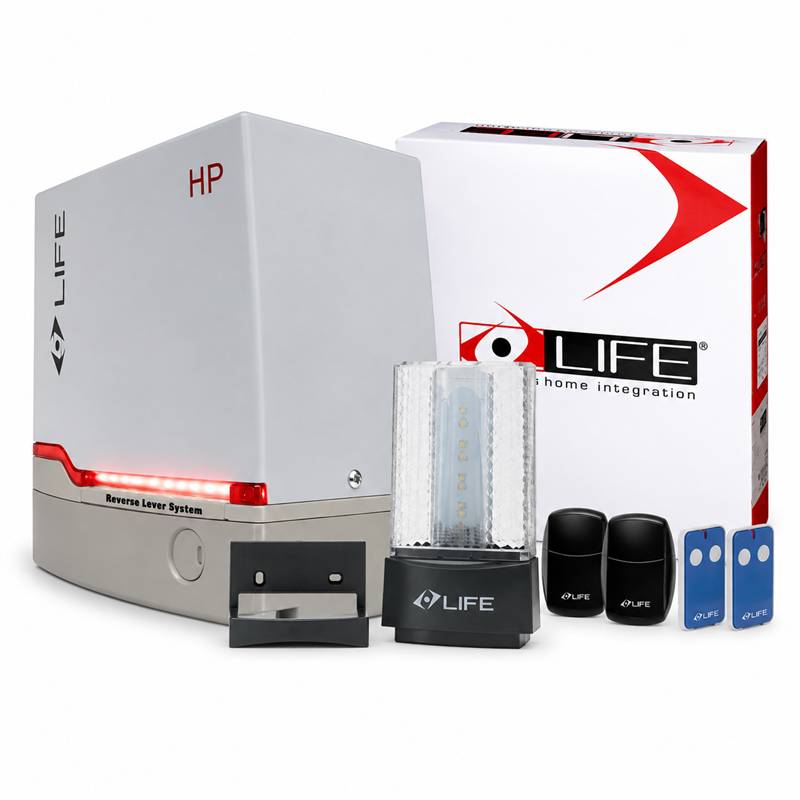

LIFE DEUS 6 HP Kit Includes

• 1 × LIFE DEUS 6 HP 600 KG 24V Sliding Gate Motor
• 1 × Built-In LIFE CT1 24VL Control Unit
• 2 × LIFE MAXI2 433.92 MHz Rolling Code Remote Controls
• 1 × Pair of LIFE VISIO Photocell Sensors
• 1 × LIFE SUNLED Signal Lamp with Antenna
• 4 × Nylon Gate Racks – 1 Metre Each
• 1 × Push Button
• 1 × Motor Fixing Plate

Double Encoder Sliding Gate Technology

The LIFE DEUS 6 HP uses a double encoder system to manage gate movement and positioning electronically. LIFE specifically developed DEUS without conventional limit switches, helping improve installation efficiency and movement monitoring. :contentReference[oaicite:2]{index=2}

80% Duty Cycle for Frequent Gate Operation

With an 80% duty cycle and up to 20 minutes of continuous duty, LIFE DEUS 600 KG is suitable for installations requiring frequent automatic gate movement. This makes it particularly useful for villas with regular vehicle access, residential compounds, offices and suitable commercial entrances. :contentReference[oaicite:3]{index=3}

LIFE DEUS 600 KG Applications

• Villa sliding gates
• Residential entrance gates
• Townhouse communities
• Apartment and residential compounds
• Office entrances
• Commercial property gates
• Private parking entrances
• Frequently operated sliding gates
• Access-controlled sliding gates

Choosing the Correct LIFE Sliding Gate Motor

Motor selection should consider the actual gate weight, gate length, wheel and track condition, mechanical resistance and expected daily operating frequency. The gate should move smoothly manually before automation is installed.

For a sliding gate within the 600 KG capacity where 24V operation and frequent use are priorities, the LIFE DEUS 6 HP provides a strong alternative to conventional 230V sliding gate motors.

LIFE DEUS 600 KG Supply & Installation UAE

We supply and install LIFE DEUS 600 KG 24V sliding gate motors in UAE for suitable residential and commercial applications. Service coverage includes Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

For correct motor selection or replacement, provide your gate dimensions, approximate gate weight, existing motor details and site photos.
