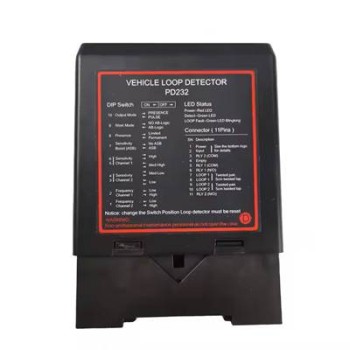

PD 232 2-Channel Vehicle Loop Detector:

• Model No : PD-232
• PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,

Technical Data:

• Supply voltage： 230V AC,
• Voltage tolerance AC: +10% / -15%
• Voltage tolerance DC: ±15%
• Power Consumption: 4.5VA
• Output relays: 240V/5A
• Operating temperature: -20°C to +65°C
• Storage temperature: -40°C to +85°C
• Frequency range: 20 kHz to 170 kHz
• Reaction time: 10ms
• Signal holding time: Unlimited
• limited when loop is permanently covered 10 minutes
• Sensitivity: Adjustable in 4 increments
• Loop inductance: Total loop plus connection wiring
• Ideal is 100μH to 300μH
• Loop connection wiring: Maximum length 20 meters,
• twisted at least 20 times per meter.
• Size of Housing: 78x40x108 mm (L x W x H).
