Garage Door Opener Drive Belt 8 Meter
Price 499 AEDIn Stock
Garage Door Opener Drive Belt 8 Meter UAE

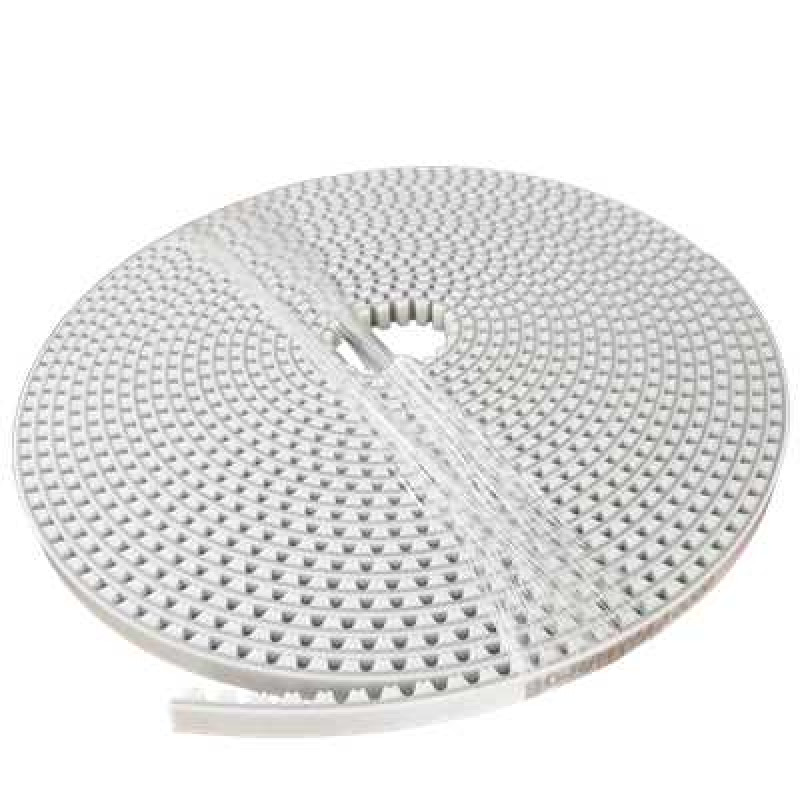

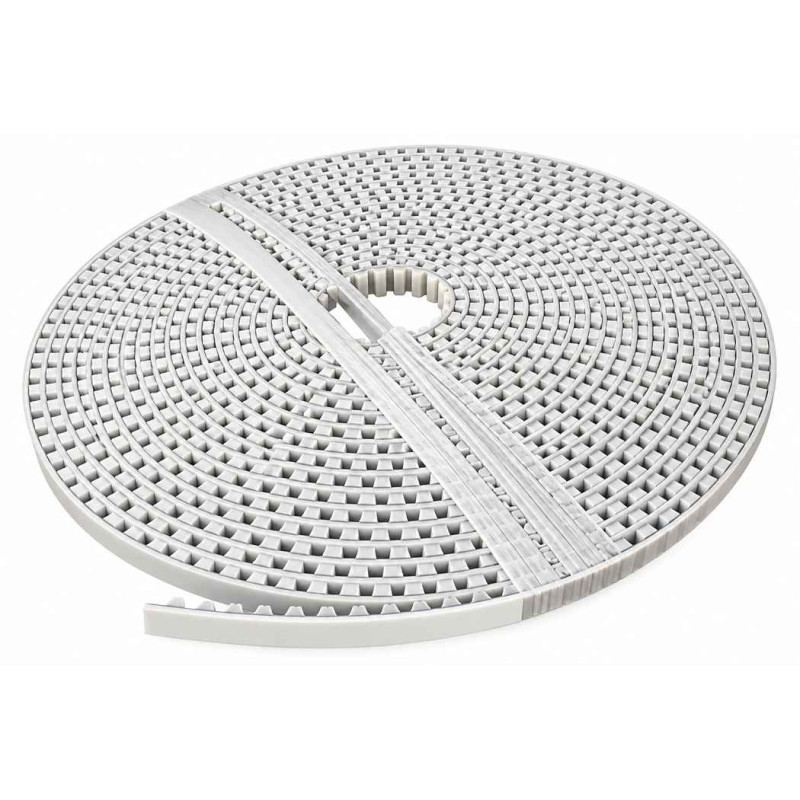

Garage Door Opener Drive Belt 8 Meter is a replacement transmission belt designed for compatible automatic garage door opener rail systems. The belt transfers movement from the garage door motor drive mechanism to the trolley, allowing a compatible sectional or overhead garage door opener to operate smoothly.
This replacement garage motor belt has a total length of 8 metres, a width of 10 mm, an 8 mm pitch and an approximate height of 6 mm. It is suitable for garage door motor repair and belt replacement applications where the original belt dimensions and tooth profile match.
Garage Door Opener Belt Key Features
- Replacement garage door opener drive belt
- Total belt length: 8 metres
- Belt width: 10 mm
- Belt pitch: 8 mm
- Belt height: 6 mm
- Designed for compatible garage door opener rail systems
- Smooth power transmission
- Suitable for replacing worn, stretched or broken belts
- Suitable for selected sectional garage door openers
- Can be cut/prepared according to the compatible rail system
- Professional replacement and installation available in UAE
Technical Specifications
| Product Type | Garage Door Opener Drive Belt |
| Total Length | 8 Meters |
| Belt Width | 10 mm |
| Belt Pitch | 8 mm |
| Belt Height | 6 mm |
| Application | Automatic Garage Door Opener Rail |
| Installation | Internal Garage Motor Rail Drive |
| Compatibility | Compatible Systems with Matching Belt Dimensions & Profile |
8 Meter Garage Door Opener Belt
The belt is supplied in an 8 metre total length for compatible garage door opener repair and replacement applications. The required finished belt length depends on the garage motor rail, trolley arrangement and original belt configuration.
Always compare the existing belt and rail system before cutting, joining or installing the replacement belt.
10mm Wide Garage Door Drive Belt
This garage opener belt measures 10 mm wide. Width is an important compatibility measurement because different garage door opener manufacturers and rail systems can use different belt dimensions.
Do not select a replacement belt based only on its overall length. The width, pitch, height and tooth profile must also match the original drive system.
8mm Belt Pitch
The drive belt uses an 8 mm pitch. Belt pitch describes the spacing between corresponding points on adjacent teeth and is critical for correct engagement with the garage opener drive pulley.
A belt with an incorrect pitch may not engage properly with the pulley and can cause slipping, jumping, noise or damage to the drive mechanism.
6mm Belt Height
The listed belt height is approximately 6 mm. The complete belt profile should be compared with the existing garage door opener belt before installation.
Replacement Garage Door Motor Belt
A garage door opener drive belt can become worn or damaged after extended operation. Replacement may be required when the existing belt is stretched, cracked, broken or has damaged teeth.
Signs a Garage Door Belt May Need Replacement
- Garage motor operates but the door does not move
- Drive belt is visibly broken
- Cracked or damaged belt teeth
- Belt slips or jumps on the drive pulley
- Uneven garage door movement
- Excessive vibration from the rail
- Belt cannot be correctly tensioned
- Unusual jumping or grinding from the drive mechanism
Garage Door Belt Compatibility
This belt is not guaranteed to fit every garage door opener. Garage door motor manufacturers can use different belt widths, tooth pitches, profiles, connectors, trolley systems and rail designs.
Before ordering, compare your existing belt with the following specifications:
- Total belt length
- 10 mm belt width
- 8 mm tooth pitch
- 6 mm belt height
- Tooth shape and profile
- Belt connector type
- Drive pulley profile
- Trolley connection
- Garage opener rail length
- Garage motor model
Compatible Garage Door Opener Brands
This replacement belt may be suitable for selected garage door opener systems from brands such as NICE, SOMFY, MARANTEC, BFT, BENINCA and other manufacturers only when the original belt dimensions, tooth profile and rail system match.
Brand compatibility must be confirmed before ordering. Similar-looking garage door opener belts are not necessarily interchangeable.
Smooth & Quiet Belt-Drive Operation
Belt-driven garage door opener systems are commonly used where smooth and relatively quiet garage door movement is required. A correctly fitted and tensioned replacement belt helps transfer motor power smoothly through the garage opener rail.
Correct belt tension is important. A belt that is too loose can slip or jump, while excessive tension can place unnecessary load on the motor, pulley, bearings, trolley and rail components.
Garage Door Belt Installation
Professional installation is recommended when replacing a garage door opener belt. The belt must be correctly routed through the rail, connected to the trolley and adjusted to the appropriate tension.
The garage door itself should also be correctly balanced before operating the motor. After belt replacement, the opener should be tested through complete opening and closing cycles and the travel limits and safety functions should be checked.
Garage Door Opener Belt Supplier UAE
We supply garage door opener replacement belts in UAE for compatible automatic sectional and overhead garage door systems.
Supply, garage motor repair, belt replacement and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send the garage door opener brand and model together with a photo of the existing belt and measurements for the belt width, pitch, height and total required length so compatibility can be checked.
