CENTURION VANTAGE SMART Swing Gate Motor
Price 2,999 AEDIn Stock

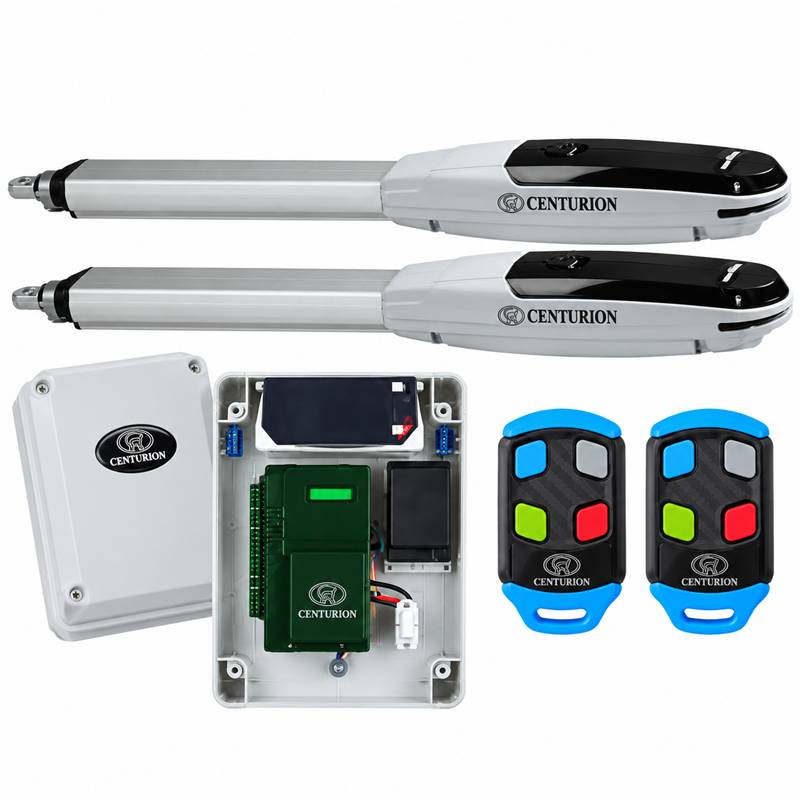

CENTURION VANTAGE SMART Automatic Swing Gate Motor UAE
CENTURION VANTAGE SMART is an advanced linear automatic swing gate motor designed for residential and compatible light-industrial gate automation. Available in VANTAGE 400 SMART and VANTAGE 500 SMART versions, the system combines strong 12V DC battery-driven operation, SMART smartphone configuration, internal position control and advanced obstacle detection.
The VANTAGE SMART range provides up to 250 kgf maximum push force, supports up to 250 operations per day and includes a built-in 433.92 MHz code-hopping multichannel receiver with memory for up to 1,500 remote controls. Battery backup allows continued gate operation during mains power failures, making it well suited to villas, residential compounds and compatible commercial entrances throughout the UAE.
CENTURION VANTAGE SMART Key Features
- Original CENTURION linear swing gate automation
- Available as VANTAGE 400 SMART and VANTAGE 500 SMART
- 12V DC battery-driven motor
- Standard battery capacity: 7.2Ah
- Wide-range mains input: 90–240V AC ±10%, 50/60Hz
- Maximum motor push force: 250 kgf
- Maximum operations per day: 250
- Duty cycle with mains present: 50%
- SMART smartphone commissioning and diagnostics
- Electronic collision detection
- Internal position-control system
- No end-of-travel gate stops required for position sensing
- Variable piston speed: 28 mm/sec
- Code-hopping multichannel receiver
- Receiver frequency: 433.92 MHz
- Receiver capacity: 1,500 remotes
- Manual key release
- Weather-resistant construction
- Protection rating: IP55
CENTURION VANTAGE SMART Technical Specifications
| Brand | CENTURION |
| Series | VANTAGE SMART |
| Models | VANTAGE 400 SMART / VANTAGE 500 SMART |
| Product Type | Linear Automatic Swing Gate Operator |
| Input Voltage | 90–240V AC ±10%, 50/60Hz |
| Motor Voltage | 12V DC |
| Motor Power Supply | Battery Driven |
| Standard Battery | 7.2Ah |
| Battery Charger | 1.8A @ 13.8V |
| Mains Current Consumption | 170mA |
| Motor Current at Rated Load | 15A Maximum |
| Maximum Push Force | 250 kgf |
| Piston Speed | 28 mm/sec – Variable |
| Maximum Operations per Day | 250 |
| Duty Cycle | 50% |
| Collision Detection | Electronic |
| Manual Override | Key Release |
| Receiver Type | Code-Hopping Multichannel Receiver |
| Receiver Frequency | 433.92 MHz |
| Receiver Capacity | 1,500 Remotes |
| Protection Rating | IP55 |
| Operating Temperature | -15°C to +50°C |
VANTAGE 400 SMART vs VANTAGE 500 SMART
| Specification | VANTAGE 400 SMART | VANTAGE 500 SMART |
|---|---|---|
| Motor Stroke | 400 mm | 500 mm |
| Typical Opening Time | 14.3 sec | 17.8 sec |
| Retracted Length | 970 mm | 1070 mm |
| Extended Length | 1370 mm | 1570 mm |
| Typical Use | Residential Swing Gates | Larger Residential / Light-Industrial Gates |
CENTURION VANTAGE SMART Gate Weight Capacity
The maximum permissible gate weight depends on the gate leaf length, opening angle and installation geometry. It is therefore not accurate to advertise VANTAGE SMART with one single gate-weight figure.
At a 90° opening angle, CENTURION specifies the following maximum leaf weights:
| Gate Leaf Length | VANTAGE 400 SMART | VANTAGE 500 SMART |
|---|---|---|
| Up to 1.5 m | 500 kg | 750 kg |
| Up to 2 m | 500 kg | 750 kg |
| Up to 2.5 m | 500 kg | 750 kg |
| Up to 3 m | 360 kg | 550 kg |
| Up to 3.5 m | 260 kg | 410 kg |
| Up to 4 m | 200 kg | 310 kg |
Important: CENTURION specifies that an electric lock must be fitted on gate leaves of 3 metres and longer in these configurations to secure the gate in the closed position.
Powerful 250 kgf Linear Swing Gate Operator
The VANTAGE SMART uses a high-torque DC motor and efficient planetary gearbox to provide up to 250 kgf maximum motor push force. This provides strong linear movement for residential and compatible light-industrial swing gate applications.
The gate should still be mechanically sound, correctly hinged and properly balanced before automation. Operator force should not be used to compensate for damaged hinges or excessive gate resistance.
SMART Smartphone Setup & Diagnostics
One of the major advantages of VANTAGE SMART is CENTURION's smartphone-based configuration technology. The compatible mobile application allows professional installers to commission the swing gate system, adjust operating parameters and access diagnostic information wirelessly.
This makes programming and troubleshooting significantly easier than conventional control panels that rely only on onboard buttons or displays.
Internal Position Control – No End Stops Required
The VANTAGE SMART uses an advanced internal position-control system to accurately monitor the swing gate position. CENTURION states that this simplifies installation because the gate does not require conventional end-of-travel stops for position sensing.
The internal limit system also contributes to accurate collision detection and controlled gate movement.
Electronic Obstacle Detection
The VANTAGE SMART controller continuously monitors gate movement and provides electronic collision detection if abnormal resistance is encountered.
Compatible infrared safety beams should still be installed as part of a professionally designed automatic swing gate system.
Smooth Acceleration & Deceleration
CENTURION's electronic speed control provides smooth starting and stopping of the gate. This reduces sudden mechanical movement and helps protect the operator, gate hinges and gate structure during repeated operation.
12V Battery Backup Swing Gate Motor
The CENTURION VANTAGE SMART is powered by a 12V DC battery-driven system with a standard 7.2Ah battery. Battery operation allows the automatic swing gate to continue functioning during mains power outages.
The system uses a 1.8A @ 13.8V charger, and the battery capacity can be increased when longer standby operation is required.
Battery Backup Performance
CENTURION specifies approximately 70 gate cycles after a half-day standby period and approximately 58 cycles after a full-day standby period using the standard 7.2Ah battery under its stated test conditions.
Actual performance depends on the gate load, battery condition, accessories, temperature and installation configuration.
Built-In 433.92MHz Receiver
The VANTAGE SMART control system includes a 433.92 MHz code-hopping multichannel receiver with selective remote addition and deletion.
The receiver can store up to 1,500 remote controls, making the system suitable for villas, residential compounds and other multi-user swing gate installations.
Vx SMART Wall Box Controller
VANTAGE SMART uses the Vx SMART wall-mounted controller. The weather-resistant controller enclosure is separated from the linear gate operators, providing convenient access for programming, wiring and maintenance.
The Vx SMART wall enclosure is designed to protect the electronics from water, dust and insects and is rated to a high level for outdoor installation.
CENTURION VANTAGE SMART Applications
- Villa swing gates
- Residential driveway gates
- Single-leaf swing gates
- Double-leaf swing gates
- Residential compounds
- Apartment entrances
- Commercial building entrances
- Compatible light-industrial gates
- Gate leaves requiring battery backup operation
CENTURION VANTAGE SMART Access Control Options
- CENTURION remote controls
- Infrared safety beams
- SMARTGUARD keypad
- GSM gate opener
- Intercom system
- RFID access control
- Long-range UHF RFID vehicle access
- Push button
- Pedestrian key switch
- Vehicle loop detector
CENTURION VANTAGE SMART Swing Gate Motor UAE
We supply CENTURION VANTAGE SMART swing gate motors throughout the UAE for residential and compatible light-commercial swing gate automation.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the length and approximate weight of each gate leaf, required opening angle, hinge position, pillar dimensions, wind exposure and expected operating frequency so the correct VANTAGE 400 SMART or VANTAGE 500 SMART configuration can be selected.
