CAME TOP-432EE 2-Button Gate Remote Control

CAME TOP-432EE 2-Channel 433.92MHz Gate Remote UAE

CAME TOP-432EE 2-Channel 433.92MHz Gate Remote UAE

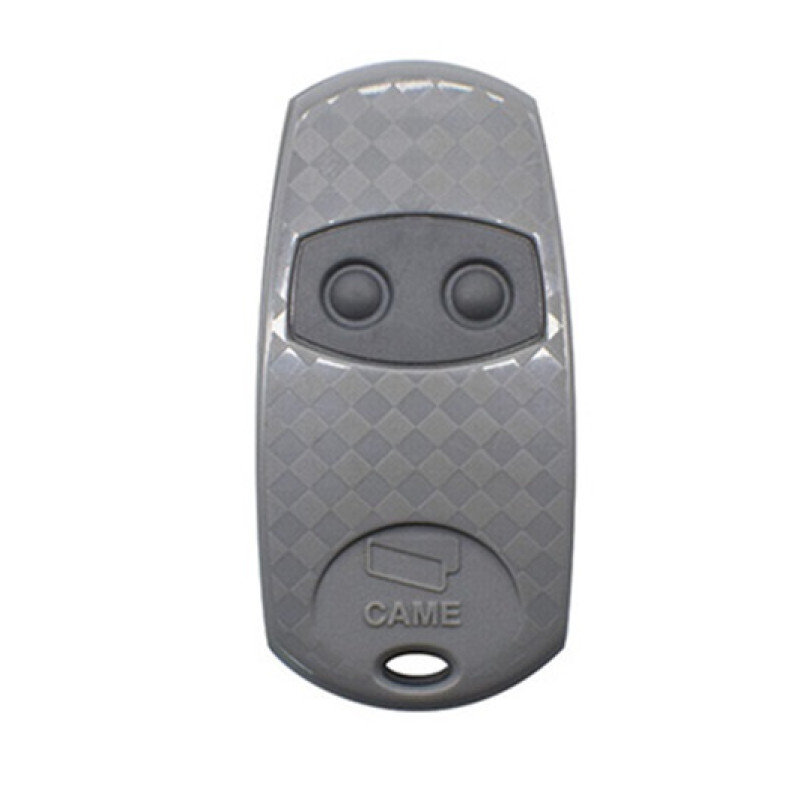

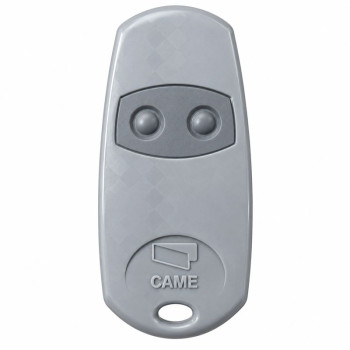

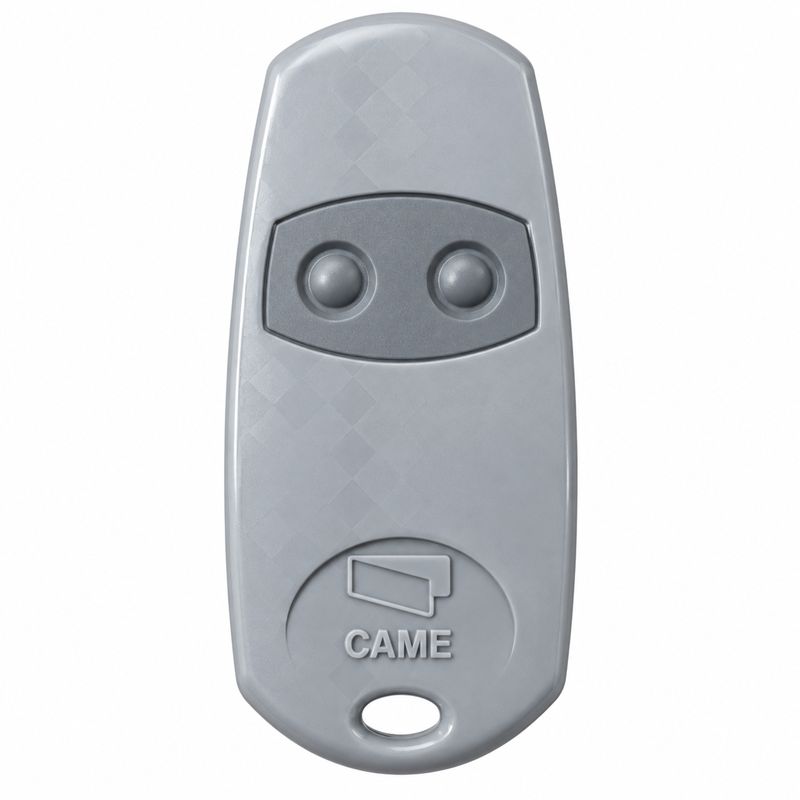

CAME TOP-432EE is an original CAME 2-button / 2-channel 433.92 MHz remote control transmitter designed for compatible CAME automatic gate, garage door and access-control systems. Product code 001TOP-432EE, this compact transmitter features self-learning capability and supports both TOP and TAM coding modes.

The CAME TOP-432EE is suitable for residential automation applications where reliable wireless gate control is required. It can learn from compatible transmitters and provides a nominal radio range of approximately 50 to 150 metres, depending on the receiver, antenna and installation conditions.

CAME TOP-432EE Key Features

• Original CAME remote control transmitter
• Model: TOP-432EE
• Product code: 001TOP-432EE
• 2 buttons / 2 channels
• Operating frequency: 433.92 MHz
• Self-learning transmitter-to-transmitter function
• 4,096 combinations in TOP mode
• 16,777,216 combinations in TAM mode
• TOP 12-bit coding mode
• TAM 24-bit coding mode
• Multi-user function
• Nominal radio range: 50–150 metres
• Battery: 1 × CR2032 lithium
• Compact ABS housing
• Operating temperature: -20°C to +55°C

CAME TOP-432EE Technical Specifications

2-Button CAME Gate Remote Control

The CAME TOP-432EE provides two independent radio channels. Depending on the receiver and automation configuration, the buttons can be programmed for functions such as full gate opening, pedestrian access, a second gate or another compatible automation command.

433.92MHz TOP / TAM Coding

The TOP-432EE operates at 433.92 MHz and supports both TOP and TAM coding modes. CAME specifies 4,096 possible combinations in TOP mode and 16,777,216 combinations in TAM mode.

This model should therefore not be described simply as a rolling-code transmitter. CAME classifies this exact TOP-432EE version around its TOP/TAM code-setting and self-learning functionality.

Self-Learning Remote Programming

The CAME TOP-432EE supports self-learning from transmitter to transmitter. This can simplify programming of an additional compatible remote when the installed receiver and system configuration permit transmitter learning.

Receiver compatibility should still be confirmed before ordering because matching the 433.92 MHz frequency alone does not guarantee that two transmitters use the same coding system.

50–150 Metre Radio Range

CAME specifies a nominal radio range of approximately 50 to 150 metres. Actual operating distance depends on the receiver, antenna, surrounding walls, buildings, vehicles and local radio interference.

CR2032 Lithium Battery

The TOP-432EE uses a single CR2032 lithium battery. Its compact ABS housing measures approximately 32 mm wide, 68.5 mm high and 11 mm deep.

Compatible CAME Radio Receivers

The TOP-432EE is designed for compatible CAME 433.92 MHz radio systems. CAME lists compatible radio accessories in the TOP 433.92 family including the AF43S plug-in frequency card and RE432M external receiver.

CAME TOP-432EE Applications

• CAME sliding gate automation
• CAME swing gate automation
• CAME garage door automation
• Compatible CAME parking and access systems
• Residential villa entrances
• Private driveway gates
• Additional or replacement compatible remote controls

CAME TOP-432EE Remote Control UAE

We supply CAME TOP-432EE remote controls throughout the UAE for compatible CAME gate and door automation systems.

Supply, compatibility checking and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Compatibility Check: Before ordering, confirm the model of your existing CAME transmitter and radio receiver. A matching 433.92 MHz frequency alone does not confirm compatibility.
