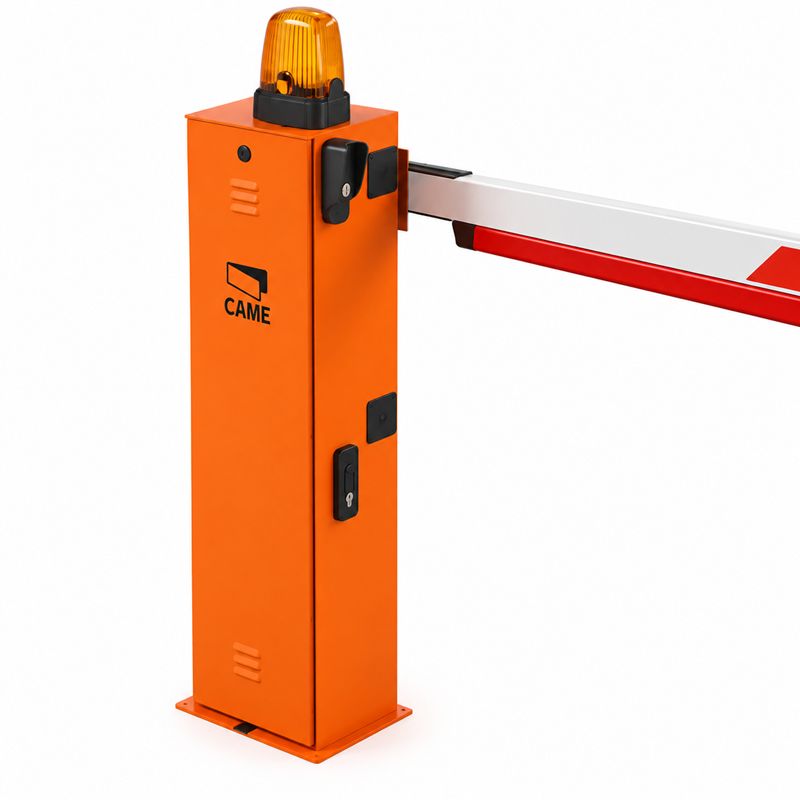

CAME G6000 6M Automatic Parking Gate Barrier

CAME G6000 6M Heavy-Duty Automatic Parking Barrier UAE

CAME G6000 6M Heavy-Duty Automatic Parking Barrier UAE

CAME G6000 is a professional heavy-duty automatic parking gate barrier designed for wide vehicle entrances, residential buildings, commercial parking areas, industrial facilities and controlled access points. Product code 001G6000, this CAME GARD-series barrier supports a maximum net passage clearance of up to 6.5 metres.

The CAME G6000 receives a 230V AC 50/60Hz mains supply while its internal irreversible gearmotor operates at 24V DC. With a powerful 300W motor, approximately 600 Nm torque, heavy-duty service rating and an opening time of approximately 4–8 seconds, the G6000 is designed for reliable vehicle access automation.

CAME G6000 Key Features

• Original CAME GARD automatic parking barrier
• Model: G6000
• Product code: 001G6000
• Maximum net clearance: up to 6.5 metres
• Mains power supply: 230V AC 50/60Hz
• Gearmotor power supply: 24V DC
• Motor power: 300W
• Maximum current draw: 15A
• Torque: 600 Nm
• Opening time at 90°: 4–8 seconds
• Heavy-duty service
• Built-in electronic control panel
• Galvanized and painted steel cabinet
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Suitable for residential, commercial and industrial vehicle entrances

CAME G6000 Technical Specifications

Up to 6.5 Metre Automatic Boom Barrier

The CAME G6000 is designed for wide vehicle entrances with a maximum net passage clearance of up to 6.5 metres. This makes it particularly suitable for entrances where a shorter 3 m or 4 m parking barrier cannot provide sufficient road coverage.

For a typical installation using a 6 metre boom arm, the G6000 provides an effective solution for residential compounds, commercial car parks, warehouses, factories and controlled vehicle entrances.

24V DC Heavy-Duty Barrier Gearmotor

The CAME G6000 uses a powerful 24V DC irreversible gearmotor designed for heavy-duty service. The barrier system itself connects to a 230V AC mains supply, while the internal automation supplies the gearmotor at 24V DC.

For accurate product information, the G6000 should therefore be described as a 230V AC powered barrier with a 24V DC gearmotor, rather than simply a 230V barrier motor.

300W Motor with 600 Nm Torque

The G6000 uses a 300W motor and develops approximately 600 Nm of torque. This is considerably higher than the shorter G4000 and provides the mechanical capacity required for the longer G6000 boom configuration.

4–8 Second Barrier Opening

CAME specifies an opening time of approximately 4 to 8 seconds at 90° for the G6000. The actual operating time depends on the boom configuration, balancing, installed accessories and system setup.

Heavy-Duty Vehicle Access Control

The CAME G6000 is designed for heavy-duty service, making it suitable for entrances with regular vehicle traffic. Typical applications include apartment buildings, commercial parking areas, factories, warehouses and industrial premises.

Correct boom balancing, spring selection and professional commissioning are important for reliable long-term operation, particularly when using a long barrier arm.

Built-In CAME Control Panel

The G6000 incorporates its electronic control system inside the barrier cabinet, providing a compact automatic vehicle access solution.

The barrier can be integrated with compatible remote controls, radio receivers, photocell sensors, loop detectors, push buttons, key switches and access-control systems.

CAME G6000 6M Boom Configuration

A standard 6 metre G6000 configuration can use the compatible CAME 001G0602C tubular aluminium boom together with the appropriate boom attachment, balancing system and support accessories.

The exact boom, spring and balancing configuration must be selected according to the accessories installed on the arm, such as reflective strips, protective profiles or other components.

CAME G6000 Safety & Access Control Options

• CAME photocell safety sensors
• Vehicle loop detector
• Inductive loop cable
• CAME remote controls
• Radio receiver
• Push button
• Key switch
• RFID access control
• UHF long-range RFID vehicle reader
• GSM gate opener
• Automatic Number Plate Recognition integration
• Fixed boom support
• Reflective boom strips

CAME G4000 vs G6000

CAME G6000 Applications

• Residential building parking entrances
• Villa and compound entrances
• Commercial car parks
• Office building parking
• Hotel entrances
• Warehouse vehicle entrances
• Factory and industrial entrances
• Staff and visitor parking
• Wide vehicle access lanes
• Automatic access-control systems

CAME G6000 Access Control Integration

The CAME G6000 can be integrated into a complete vehicle access-control system. Depending on project requirements, the barrier can operate using remote controls, RFID cards, long-range UHF vehicle tags, GSM access, push buttons, loop detectors and other compatible access-control equipment.

Vehicle loop detectors can also be used for vehicle presence detection, automatic opening or safety functions depending on the control-panel configuration.

CAME G6000 Parking Gate Barrier UAE

We supply CAME G6000 automatic parking gate barriers throughout the UAE for residential, commercial and industrial vehicle access-control applications.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the clear entrance width, required boom length, approximate daily traffic and required access-control or safety accessories so the correct G6000 boom and balancing configuration can be selected.
