CAME BY-3500T 3500 KG Industrial Sliding Gate Motor

CAME BY-3500T 3500 KG 400V Three-Phase Sliding Gate Motor UAE

CAME BY-3500T is a powerful industrial sliding gate motor for gates weighing up to 3,500 KG. Designed specifically for very large commercial and industrial sliding gates, this heavy-duty operator uses a 400V AC three-phase motor and robust mechanical construction for reliable operation in demanding vehicle access applications.

Product reference 001BY-3500T, the BY-3500T delivers approximately 1,000W power, 3,500N thrust and a movement speed of 10.5 m/min. It is designed for industrial facilities, warehouses, factories, logistics centres and other sites requiring automation of exceptionally large sliding gates.

CAME BY-3500T Key Features

• Original CAME industrial sliding gate automation
• Model: BY-3500T
• Product reference: 001BY-3500T
• Maximum gate weight: 3,500 KG
• Designed for very large industrial sliding gates
• 400V AC three-phase motor
• Power: 1,000W
• Maximum thrust: 3,500N
• Movement speed: 10.5 m/min
• Operating capacity: 8 cycles/hour
• Module 6 drive pinion
• Mechanical opening and closing limit switches
• Integrated electronic control board
• Self-diagnosing safety-device support
• Ready for courtesy-light management
• Heavy-duty industrial mechanical construction
• Protection rating: IP54
• Operating temperature: -20°C to +55°C

CAME BY-3500T Technical Specifications

3500 KG Industrial Sliding Gate Motor

The CAME BY-3500T is engineered for very large sliding gates weighing up to 3,500 KG. It sits above the CAME BK range and is intended for demanding industrial entrances where standard residential or commercial sliding gate motors do not provide sufficient capacity.

CAME positions the BY-3500T specifically for industrial sites and very large gates, making it suitable for factories, logistics centres, warehouses, industrial compounds and high-capacity vehicle entrances.

400V Three-Phase Heavy-Duty Gate Motor

The BY-3500T uses a 400V AC three-phase motor. Three-phase power provides strong starting performance and is particularly appropriate for large industrial gate automation applications.

The operator delivers approximately 1,000W power and up to 3,500N thrust, providing the mechanical force required for large sliding gate structures.

10.5 Metres Per Minute Gate Speed

The CAME BY-3500T moves the sliding gate at approximately 10.5 metres per minute. CAME specifies an operating capacity of approximately 8 cycles per hour.

The motor should be selected according to the gate weight, gate dimensions and expected operating frequency.

Heavy-Duty Module 6 Pinion

The BY-3500T uses a Module 6 drive pinion. The sliding gate rack must therefore be compatible with the Module 6 drive system.

This is particularly important when replacing another gate motor, because smaller gate operators often use Module 4 racks that are not automatically compatible with the BY-3500T.

Mechanical Limit Switches

The operator uses mechanical opening and closing limit switches to detect the fully open and fully closed gate positions.

The limit-switch system should be correctly adjusted during commissioning so that the gate stops accurately at both ends of travel.

Self-Diagnosing Safety Devices

The BY-3500T control architecture supports self-diagnosing safety devices, allowing compatible safety equipment to be monitored by the automation system.

Appropriate safety accessories such as photocells and sensitive edges should be selected according to the dimensions and risk assessment of the industrial gate installation.

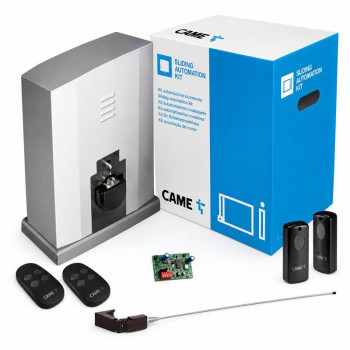

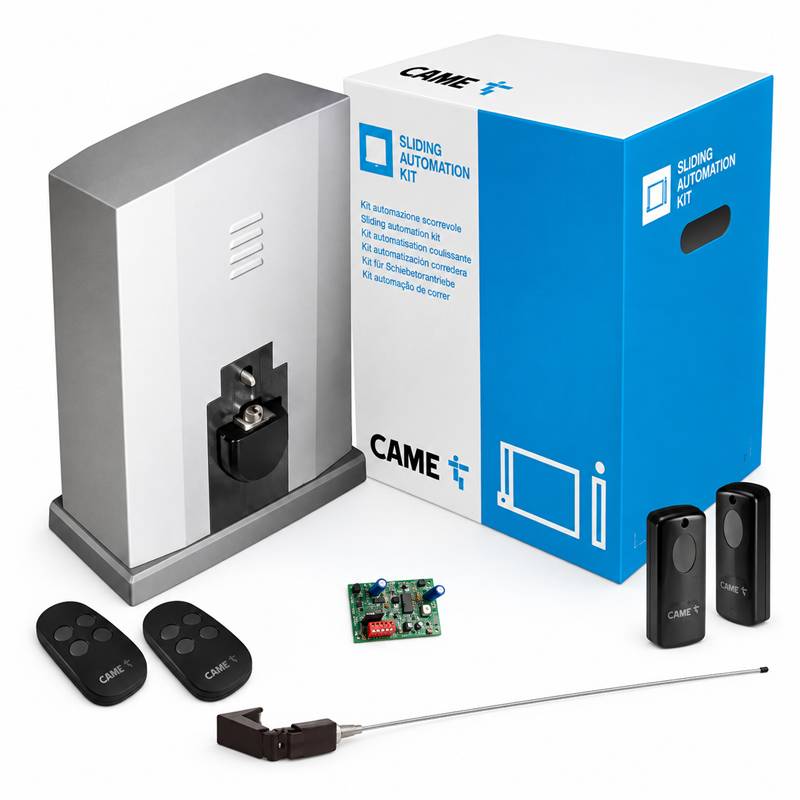

CAME BY-3500T Kit Includes

• 1 × CAME BY-3500T Industrial Sliding Gate Motor
• 1 × Integrated Electronic Control Unit
• 2 × Remote Controls
• 1 × Pair of Photocell Safety Sensors
• 1 × Remote Receiver
• 1 × Flashing Warning Light
• 1 × Push Button

Important: The rack for this motor must be selected according to its Module 6 pinion. Do not automatically include a standard Module 4 nylon rack in the package.

Professional Installation for 3500 KG Sliding Gates

A sliding gate approaching 3,500 KG requires careful mechanical assessment before automation. The gate wheels, rail, guides, rack, end stops, foundation and supporting structure must all be suitable for the gate weight.

The gate must move smoothly manually before the motor is installed. A powerful industrial operator should never be used to compensate for damaged wheels, poor track alignment or excessive mechanical resistance.

CAME BY-3500T Applications

• Industrial sliding gates
• Factory entrances
• Warehouse gates
• Logistics centres
• Industrial compounds
• Heavy vehicle entrances
• Large commercial gates
• Storage facilities
• Infrastructure sites
• Very large automatic sliding gates

CAME BK 2200 vs BY-3500T

CAME BY-3500T Gate Motor UAE

We supply CAME BY-3500T 3500 KG industrial sliding gate motors throughout the UAE for factories, warehouses, industrial compounds and large commercial vehicle entrances.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the actual gate weight, gate length, available three-phase supply, rack module, daily operating frequency, wheel and track condition and required safety accessories before selecting the CAME BY-3500T.
