CAME BKS12AGS 1200 KG Sliding Gate Motor
Price 3,500 AEDIn Stock
CAME BKS12AGS 1200 KG 230V Sliding Gate Motor UAE
CAME BKS12AGS, commonly known as the CAME BK 1200 KG, is a powerful 230V automatic sliding gate motor designed for large gates weighing up to 1,200 KG and measuring up to 20 metres in length. Product code 801MS-0080, the BKS12AGS is part of CAME's professional BK series for large residential, commercial and industrial sliding gate applications.
The CAME BK 1200 combines a 380W 230V gearmotor, maximum thrust of 850N, movement speed of 10.5 m/min, integrated electronic control board with programming display, built-in radio decoding and mechanical limit switches. It is a reliable automation solution for large and heavy sliding gates throughout the UAE.
CAME BK 1200 KG Key Features
- Original CAME sliding gate automation
- Model: BKS12AGS
- Product code: 801MS-0080
- Maximum gate weight: 1,200 KG
- Maximum gate length: 20 metres
- Power supply: 230V AC, 50/60Hz
- Motor power supply: 230V
- Motor power: 380W
- Maximum thrust: 850N
- Movement speed: 10.5 m/min
- Operating capacity: 14 cycles/hour
- Current absorption: 3.3A
- Module 4 drive pinion
- Mechanical opening and closing limit switches
- Integrated electronic control board
- Programming display
- Built-in radio decoding
- CAME Connect compatible
- RIO System 2.0 compatible
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Designed for large automatic sliding gates
CAME BKS12AGS Technical Specifications
| Brand | CAME |
| Series | BK |
| Model | BKS12AGS |
| Product Code / MPN | 801MS-0080 |
| Product Type | Automatic Sliding Gate Operator |
| Maximum Gate Weight | 1,200 KG |
| Maximum Gate Length | 20 m |
| Power Supply | 230V AC – 50/60Hz |
| Motor Power Supply | 230V |
| Power | 380W |
| Current Absorption | 3.3A |
| Maximum Thrust | 850N |
| Movement Speed | 10.5 m/min |
| Cycles Per Hour | 14 |
| Pinion | Module 4 |
| Limit Switch | Mechanical |
| Control Board | Integrated Electronic Control Board with Display |
| Radio Decoding | Built-In |
| CAME Connect | Compatible |
| RIO System 2.0 | Compatible |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
1200 KG Heavy-Duty Sliding Gate Motor
The CAME BK 1200 KG is designed for large sliding gates weighing up to 1,200 KG. Unlike smaller residential gate operators, the BK series is engineered for larger gate structures and demanding vehicle entrance applications.
CAME specifies a maximum gate leaf length of 20 metres for the BKS12AGS, making it suitable for large residential compounds, apartment buildings, commercial properties, warehouses and industrial entrances.
230V CAME BK Gate Motor
The BKS12AGS uses a 230V AC gearmotor with rated power of 380W. It delivers maximum thrust of 850N and moves the sliding gate at approximately 10.5 metres per minute.
CAME specifies an operating capacity of approximately 14 cycles per hour for this model.
Integrated CAME Control Board
The CAME BKS12AGS is supplied with an integrated electronic control board featuring a programming display and built-in radio decoding.
The integrated electronics simplify installation, programming and management of compatible CAME accessories and automatic gate functions.
Mechanical Limit Switches
The standard CAME BKS12AGS uses mechanical limit switches to detect the gate's fully open and fully closed positions.
Correct positioning and adjustment of the limit-switch components are important during installation to ensure the sliding gate stops at the required opening and closing points.
CAME Connect Compatible
The CAME BK platform is compatible with CAME Connect. With the appropriate CAME connectivity accessories, the automation can be incorporated into CAME's connected gate-management ecosystem for compatible local or remote digital management.
RIO System 2.0 Compatibility
The BKS12AGS is also designed for compatibility with CAME RIO System 2.0. This allows compatible wireless safety accessories to be incorporated into appropriately configured CAME automation installations.

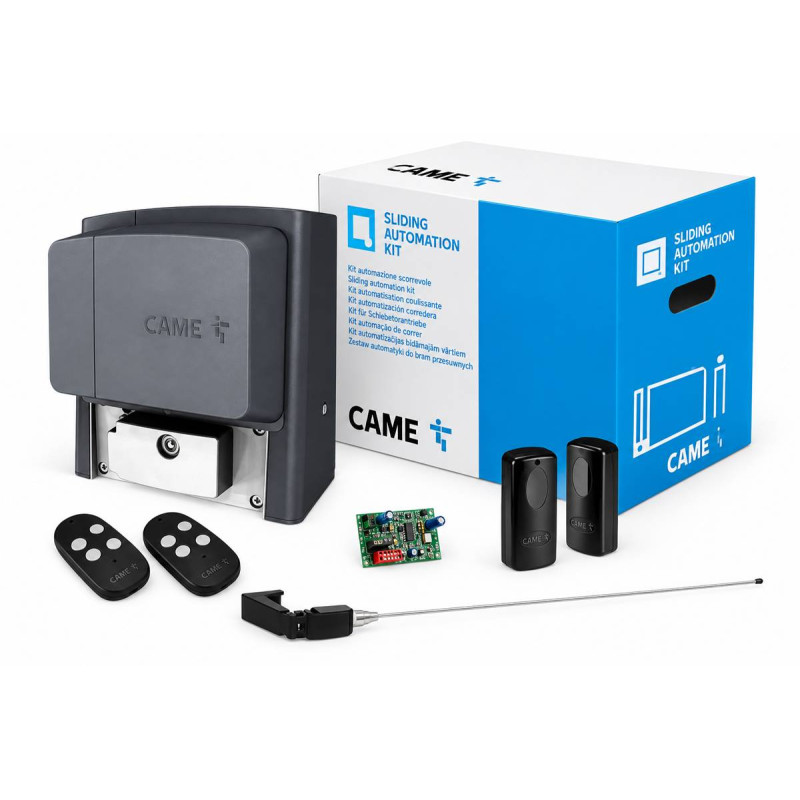

CAME BK 1200 KG Kit Includes
- 1 × CAME BK 1200 KG Sliding Gate Motor
- 1 × Integrated Control Unit
- 2 × Remote Controls
- 1 × Pair of Photocell Safety Sensors
- 1 × Remote Receiver
- 1 × Flashing Warning Light
- 4 Metres Nylon Gate Rack
- 1 × Push Button
Note: The above package contents describe our Gate Motor UAE package and are not the manufacturer's standard standalone operator contents.
CAME BK 1200 KG Applications
- Large villa sliding gates
- Residential compounds
- Apartment building entrances
- Commercial sliding gates
- Warehouse entrances
- Factory gates
- Industrial facilities
- Commercial vehicle entrances
- Large automatic driveway gates
- Controlled vehicle access points
CAME BK 800 vs BK 1200 vs BK 1800
| Model | Maximum Gate Weight | Maximum Length | Pinion |
|---|---|---|---|
| BKS08AGS | 800 KG | 20 m | Module 4 |
| BKS12AGS | 1,200 KG | 20 m | Module 4 |
| BKS18AGS | 1,800 KG | 20 m | Module 4 |
CAME BK 1200 KG Gate Motor UAE
We supply CAME BKS12AGS BK 1200 KG sliding gate motors throughout the UAE for large residential, commercial and industrial automatic sliding gate applications.
Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the actual gate weight, gate length, rack type, gate condition, daily operating frequency and required safety accessories to ensure the CAME BKS12AGS is correctly sized for your installation.
