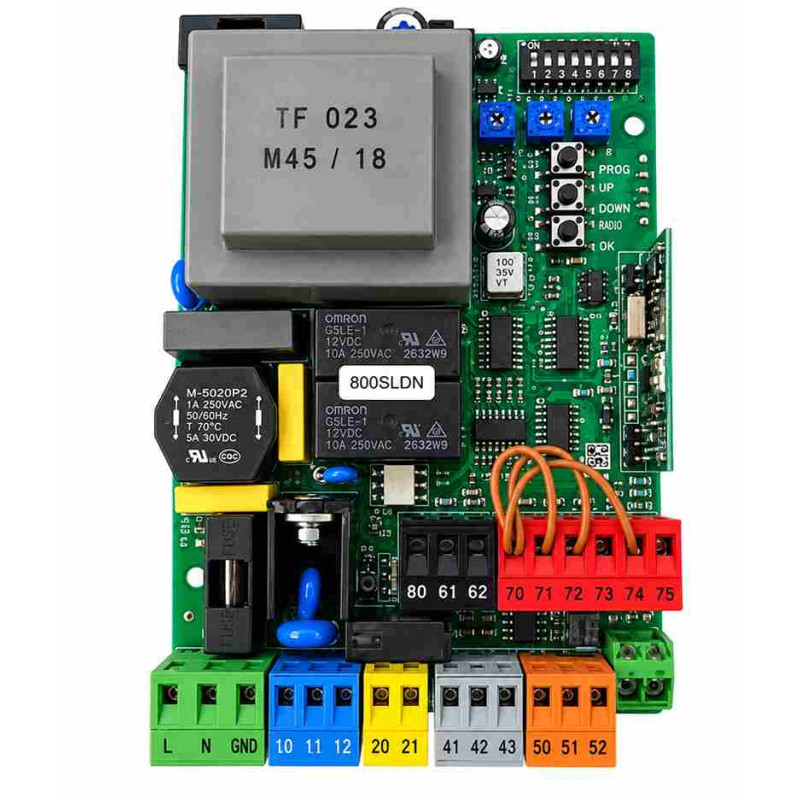

BFT SHYRA F 800SLDN Control Board for DEIMOS AC A800
Price 780 AEDIn Stock
BFT SHYRA F 800SLDN 230V Control Board for DEIMOS AC A800 UAE
BFT SHYRA F 800SLDN is an original BFT 230V sliding gate motor control board designed for the BFT DEIMOS AC A800 automatic sliding gate operator. Reference I700081 10001 and part number 2610736, this electronic control panel manages the motor, radio remote controls, safety inputs and gate automation functions.
The SHYRA F 800SLDN operates from a 230V single-phase supply and controls one compatible 230V single-phase operator up to 500W. It features an integrated dual-channel radio receiver, potentiometer-based adjustments, LED fault diagnostics, removable terminal blocks and verified safety inputs for professional gate automation installations.
BFT SHYRA F 800SLDN Key Features
- Original BFT electronic control board
- Model: SHYRA F 800SLDN
- Reference: I700081 10001
- Part number: 2610736
- Designed for BFT DEIMOS AC A800
- 230V single-phase panel power supply
- 230V single-phase operator output
- Maximum operator power: 500W
- Integrated dual-channel radio receiver
- Potentiometer-based settings
- LED-based fault diagnostics
- Removable terminal blocks
- Pedestrian opening via compatible radio control
- Quick lock function
- Pulse lock function
- Two safety-verified inputs
- Dedicated 8k2 safety-edge input
BFT SHYRA F 800SLDN Technical Specifications
| Brand | BFT |
| Model | SHYRA F 800SLDN |
| Reference / MPN | I700081 10001 |
| Part Number | 2610736 |
| Product Type | Sliding Gate Motor Electronic Control Board |
| Compatible Operator | BFT DEIMOS AC A800 |
| Panel Power Supply | 230V Single Phase |
| Operator Power Supply | 230V Single Phase |
| Maximum Operator Power | 500W |
| Settings | Potentiometer Based |
| Radio Receiver | Integrated Dual-Channel Receiver |
| Pedestrian Opening | Yes – Via Compatible Radio Control |
| Quick Lock | Yes |
| Pulse Lock | Yes |
| Safety Inputs | 2 Safety-Verified Inputs |
| Safety Edge Input | 1 × Dedicated 8k2 Input |
| Diagnostics | LED-Based Fault Reporting |
| Terminal Blocks | Removable |
Original Control Board for BFT DEIMOS AC A800
The BFT SHYRA F 800SLDN is designed for the BFT DEIMOS AC A800 sliding gate operator. It provides the main electronic control functions required to operate the motor together with compatible radio controls, photocells, safety edges and command accessories.
The DEIMOS AC A800 is a 230V sliding gate operator designed for gates weighing up to approximately 800 kg. Selecting the correct control board is important for maintaining the intended electrical configuration and automation functions of the operator.
230V Sliding Gate Control Board
The SHYRA F 800SLDN uses a 230V single-phase panel supply and provides power and control for a compatible 230V single-phase gate operator up to 500W.
Electrical installation should be completed by a qualified gate automation technician. The mains supply must be isolated before control-board installation, wiring or maintenance.
Integrated Dual-Channel Radio Receiver
The control board includes an integrated dual-channel radio receiver for compatible BFT remote-control transmitters. Supported remotes can therefore be memorized into the automation system without requiring a separate external receiver for normal radio-control operation.
Remote compatibility should always be confirmed according to the BFT radio system and transmitter coding technology in use.
Pedestrian Opening Function
The BFT SHYRA F 800SLDN supports pedestrian opening via radio control. This allows partial opening of the sliding gate for pedestrian access instead of completing a full vehicle-access opening cycle.
Safety Inputs & 8k2 Safety Edge
The control panel provides two safety-verified inputs, with one input dedicated to an 8k2 resistive safety edge. This allows compatible gate safety equipment to be integrated into the automation system.
Photocells, safety edges and other protective devices should be correctly wired, configured and tested before the automatic gate is returned to service.
LED Fault Diagnostics
The SHYRA F 800SLDN features LED-based fault reporting to assist technicians during installation and troubleshooting. The diagnostic indications help check command and safety conditions when investigating an automation fault.
Potentiometer-Based Settings
Applicable control parameters are adjusted using potentiometers, providing straightforward setup during installation or PCB replacement.
Settings should be configured according to the motor, gate mechanics, connected safety devices and BFT technical instructions.
Removable Terminal Blocks
The control panel uses removable terminal blocks, making wiring and replacement more convenient for professional installers. Existing field wiring should still be identified and verified before transferring connections to a new board.
BFT SHYRA F 800SLDN Replacement PCB
The I700081 10001 control board is suitable for replacing a damaged or faulty compatible SHYRA F control panel in a BFT DEIMOS AC A800 installation.
Before fitting a replacement PCB, check the motor, mains power supply, capacitor, electromechanical limit switches, photocells, flashing light and accessory wiring. A short circuit or faulty external component can damage a replacement control board if the original cause of failure is not corrected.
BFT SHYRA F 800SLDN Compatibility
Primary compatible operator: BFT DEIMOS AC A800.
Before ordering, verify the existing PCB label for I700081 10001 and confirm the gate motor model. Similar-looking BFT SHYRA boards are available for different automation applications and should not be assumed interchangeable.
BFT SHYRA F 800SLDN Control Board UAE
We supply BFT SHYRA F 800SLDN control boards throughout the UAE for compatible BFT DEIMOS AC A800 sliding gate automation systems.
Supply, replacement, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Send a clear photo of your existing BFT control-board label and gate motor model so compatibility can be confirmed before replacement.
