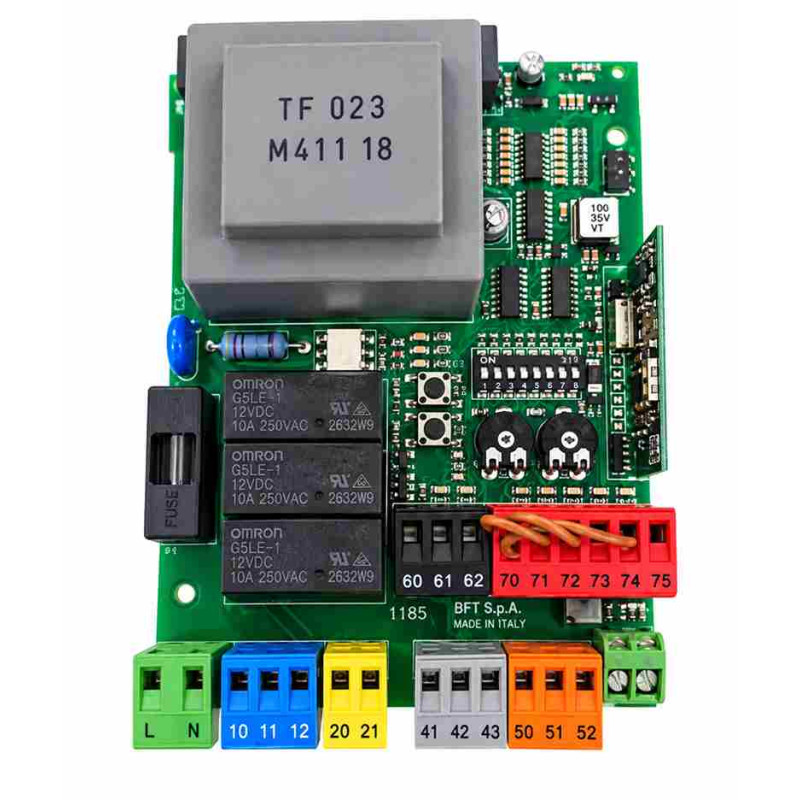

BFT SHYRA AC BA 230V Parking Barrier Control Board

BFT SHYRA AC BA 230V Control Board for MOOVI Barriers UAE

BFT SHYRA AC BA 230V is an original electronic parking barrier control board designed for compatible BFT MOOVI automatic boom barrier systems. Reference I700101 10001 and part number 2613933, this control panel manages barrier motor operation, radio remote controls, safety devices and access-control commands.

The SHYRA AC BA operates from a 230V single-phase power supply and supports a compatible 230V single-phase operator up to 500W. It features removable terminal blocks, potentiometer-controlled settings, LED fault diagnostics, an integrated dual-channel radio receiver and dedicated safety inputs for professional parking barrier installations.

BFT SHYRA AC BA Key Features

• Original BFT parking barrier control board
• Model: SHYRA AC BA 230V
• Reference: I700101 10001
• Part number: 2613933
• Designed for compatible BFT MOOVI parking barriers
• Panel power supply: 230V single phase
• Operator power supply: 230V single phase
• Maximum operator power: 500W
• Integrated dual-channel radio receiver
• Removable terminal blocks
• Potentiometer-controlled settings
• LED-based fault diagnostics
• Two verified safety inputs
• One dedicated 8k2 safety-edge input
• Pedestrian opening via compatible remote control
• Quick closing function
• Pulse blocking function

BFT SHYRA AC BA Technical Specifications

Control Board for BFT MOOVI Parking Barriers

The BFT SHYRA AC BA is specifically designed for compatible BFT MOOVI automatic parking barrier systems. It provides the electronic control required for boom movement, radio commands, safety accessories and external access-control devices.

Typical applications include vehicle entrances, commercial parking areas, residential compounds, warehouses, factories, office buildings and other controlled vehicle-access points.

Integrated Dual-Channel Radio Receiver

The SHYRA AC BA features an integrated dual-channel radio receiver for compatible BFT remote-control transmitters. This allows supported BFT remotes to operate the parking barrier without requiring a separate receiver for standard radio-control applications.

The exact transmitter and radio coding compatibility should be confirmed before programming additional or replacement remote controls.

Parking Barrier Safety Inputs

The control panel provides two verified safety inputs, including one specifically dedicated to an 8k2 resistive safety edge. These inputs allow compatible barrier safety devices to be incorporated into the vehicle access system.

Correctly selected and installed safety devices are particularly important for automatic parking barriers operating in vehicle and pedestrian areas.

Loop Detector & Photocell Integration

The BFT MOOVI barrier system can be integrated with compatible vehicle-detection and safety accessories such as loop detectors and photocell sensors through the appropriate control and safety inputs.

This makes the system suitable for automated parking entrances where the barrier needs to respond to vehicle detection, access-control commands and safety conditions.

Access Control Integration

The BFT SHYRA AC BA can form part of a complete parking access system using compatible external command devices. Depending on system design, these may include RFID readers, access-control systems, push buttons, GSM gate openers and vehicle loop detectors.

External equipment must be connected using the correct dry-contact or supported control interface specified for the installation.

LED Fault Diagnostics

The SHYRA AC BA includes LED-based fault reporting to assist technicians during installation, programming and troubleshooting.

LED indication can help identify control-input and safety-device conditions when diagnosing a barrier that does not open, close or respond correctly.

Potentiometer-Controlled Settings

The board uses potentiometers for applicable adjustments, providing straightforward control during commissioning and replacement.

All settings should be configured according to the barrier model, boom configuration, connected safety equipment and BFT technical instructions.

BFT SHYRA AC BA Replacement Control Board

The SHYRA AC BA I700101 10001 can be used when replacing a faulty compatible BFT MOOVI parking barrier control board.

Before fitting a replacement PCB, technicians should inspect the barrier motor, power supply, limit system, capacitor where applicable, photocells, loop detector connections, flashing light and external accessory wiring. Any electrical fault that caused the original board failure should be corrected before connecting the replacement board.

BFT SHYRA AC BA Compatibility

The SHYRA AC BA is designed for compatible BFT MOOVI barrier configurations. Before ordering, verify the existing control-board label and complete barrier model.

Important: Do not confuse SHYRA AC BA with the standard SHYRA AC sliding gate control board. The BA version is intended for barrier automation, while other SHYRA versions are used with different BFT operator applications.

BFT SHYRA AC BA Control Board UAE

We supply BFT SHYRA AC BA 230V parking barrier control boards throughout the UAE for compatible BFT MOOVI automatic barrier systems, with replacement, programming and technical support available.

Supply and support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Send a clear photo of the existing BFT control-board label and MOOVI barrier model so the correct replacement PCB can be confirmed.
