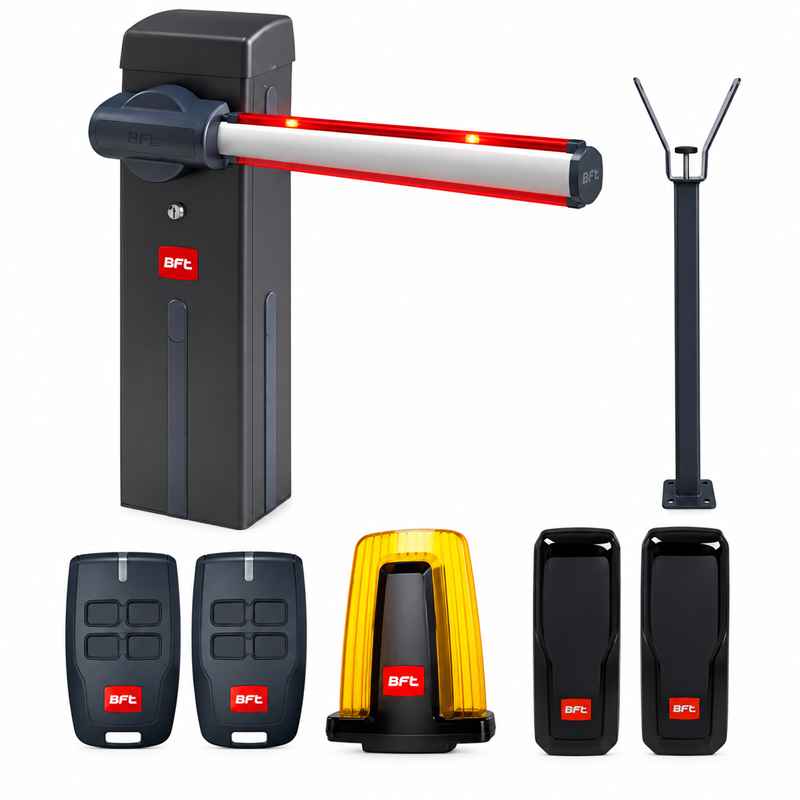

BFT GIOTTO BT A30 3M Automatic Parking Barrier

BFT GIOTTO BT A30 3M 24V Automatic Boom Barrier UAE

BFT GIOTTO BT A30 is a professional 24V automatic parking barrier designed for vehicle entrances with a clear opening of up to 3 metres. Product code P940078 00002 and international code 2600875, the GIOTTO BT A30 combines intensive-use performance, encoder obstacle detection and reliable BFT automation technology for residential and commercial parking access.

With an opening time of approximately 4 seconds, the GIOTTO BT A30 provides efficient vehicle access for car parks, residential communities, commercial buildings, offices, warehouses and controlled entrances. The barrier uses the BFT MERAK BG control unit and supports integration with compatible safety and access-control equipment.

BFT GIOTTO BT A30 Key Features

• Original BFT automatic parking barrier
• Model: GIOTTO BT A30
• Product code: P940078 00002
• International code: 2600875
• Maximum clear opening: 3.0 metres
• Opening time: approximately 4 seconds
• 24V barrier motor
• MERAK BG electronic control unit
• Encoder-based impact reaction
• Opening and closing slowdown
• Designed for intensive use
• Mechanical locking
• Personal-key manual release
• IP54 protection rating
• Optional on-board backup battery system
• Control unit positioned separately from the mechanical section
• Grey RAL 7015 cabinet finish
• Suitable for professional vehicle access control

BFT GIOTTO BT A30 Technical Specifications

3 Metre Automatic Parking Barrier

The BFT GIOTTO BT A30 is designed for vehicle entrances requiring a barrier with a clear passage of up to 3 metres. Its compact boom length makes it suitable for standard parking lanes, residential entrances and commercial vehicle access points.

The approximately 4-second opening time provides a good balance between controlled access, safety and traffic flow.

24V Intensive-Use Barrier Motor

The GIOTTO BT A30 uses a 24V motor and is designed for intensive-use applications. This makes it suitable for entrances where the boom barrier may perform frequent opening and closing cycles throughout the day.

Typical applications include residential communities, office parking areas, commercial buildings, hotels, hospitals, warehouses and private parking facilities.

BFT MERAK BG Control Unit

The BFT GIOTTO BT A30 uses the MERAK BG electronic control unit. The control system manages barrier operation and allows compatible command, radio, safety and access-control accessories to be incorporated into the installation.

The control unit is positioned in an accessible location and separated from the mechanical section to assist installation and maintenance.

Encoder Obstacle Detection

The GIOTTO BT A30 uses an encoder for impact reaction. The encoder monitors barrier movement and forms part of the automation system's obstacle-detection and movement-control functions.

Correct commissioning and safety-device installation are essential for safe automatic barrier operation.

Opening & Closing Slowdown

The barrier supports slowdown, allowing smoother movement as the boom approaches its programmed end positions. This reduces abrupt movement and contributes to controlled barrier operation.

Optional Backup Battery

An optional on-board backup battery power system can be installed in compatible GIOTTO BT A30 configurations. This can allow the barrier automation system to continue operating during temporary mains power interruptions, depending on the installed battery configuration and system setup.

Loop Detector Integration

The BFT GIOTTO BT A30 can form part of a complete automatic parking system using compatible vehicle loop detectors. A loop detector can detect a vehicle at the entrance and provide a command or safety signal to the barrier control system according to the installation design.

Photocell Safety Sensors

Compatible photocell safety sensors can be installed across the vehicle lane to provide additional obstacle detection. Photocells are particularly important where vehicles or pedestrians may pass through the barrier area.

Access Control Integration

The GIOTTO BT A30 can be integrated with compatible vehicle access-control equipment, including:

• RFID card readers
• UHF long-range RFID readers
• Vehicle loop detectors
• Push buttons
• Remote controls
• GSM gate openers
• Keypads
• Ticketing and parking-control systems

External equipment should be connected using the appropriate control interface specified for the MERAK BG control system.

Manual Release During Power Failure

The BFT GIOTTO BT A30 includes a personal-key manual release system. This allows authorised personnel to mechanically release the barrier when manual operation is required.

BFT GIOTTO BT A30 Applications

• Residential community entrances
• Villa parking entrances
• Commercial buildings
• Office parking areas
• Hotels and hospitals
• Shopping centres
• Warehouses and factories
• Private car parks
• Staff parking areas
• Vehicle access-control lanes

BFT GIOTTO BT A30 Parking Barrier UAE

We supply BFT GIOTTO BT A30 3 metre automatic parking barriers throughout the UAE for residential, commercial and industrial vehicle access-control projects.

Professional supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Before Ordering: Confirm the required clear opening, boom configuration, traffic frequency, access-control requirements and safety accessories so the correct BFT parking barrier system can be selected.
