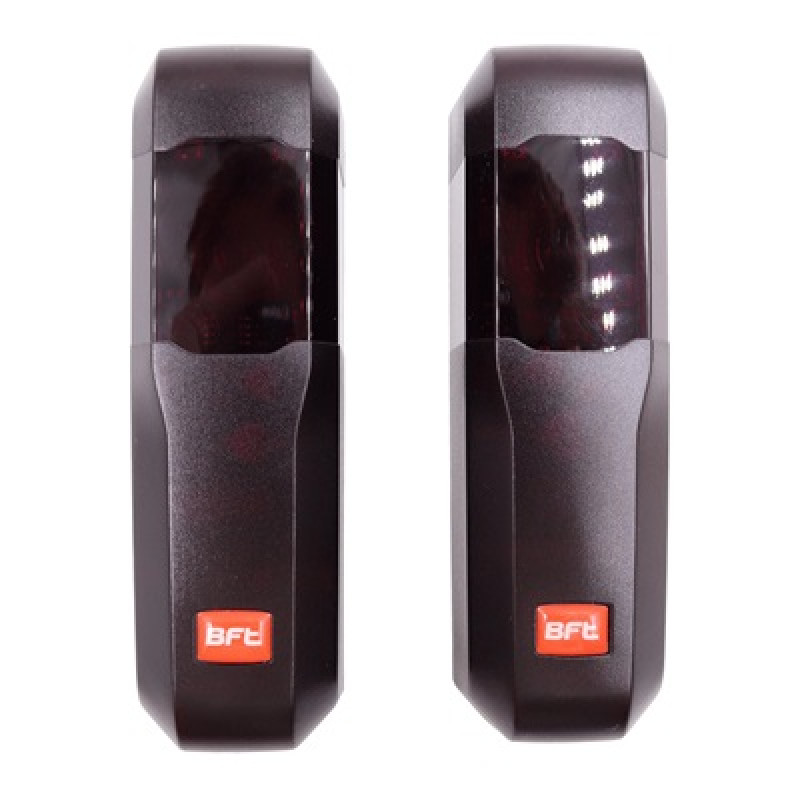

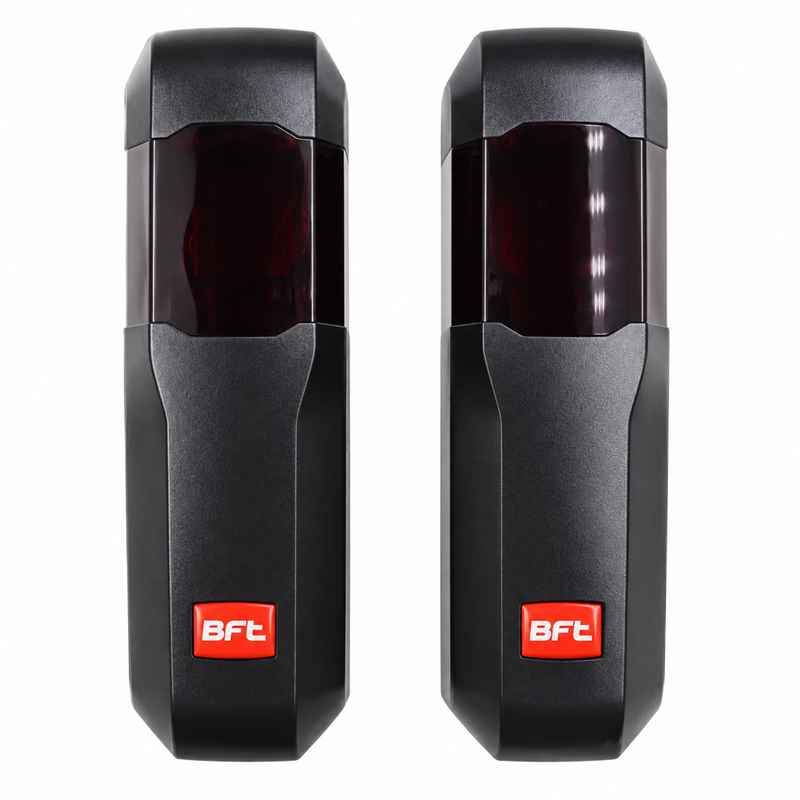

BFT COMPACTA A20-180 Photocell Safety Sensors
Price 200 AEDIn Stock
BFT COMPACTA A20-180 Adjustable Photocell Sensors UAE
BFT COMPACTA A20-180 is a pair of original BFT hardwired infrared photocell safety sensors for automatic gates, garage doors and parking barrier automation. Product code P111782 and international code 2601411, the COMPACTA photocells provide obstacle detection across an automatic entrance to improve operational safety.
The sensor heads can be adjusted through a total of 180° horizontally — 90° left and 90° right — making alignment easier where the transmitter and receiver cannot be installed directly opposite each other. The system provides a nominal operating range of up to 20 metres.
BFT COMPACTA A20-180 Key Features
- Original BFT photocell safety sensors
- Model: COMPACTA A20-180
- Product code: P111782
- International code / part number: 2601411
- Supplied as transmitter + receiver pair
- Hardwired infrared safety photocells
- Nominal operating range: 20 metres
- Horizontal adjustment: 180° total
- Adjustment: 90° left + 90° right
- Power supply: 12–33VAC / 15–35VDC
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Compact external-mount design
- Suitable for compatible automatic gates and barriers
BFT COMPACTA A20-180 Technical Specifications
| Brand | BFT |
| Model | COMPACTA A20-180 |
| Product Code / MPN | P111782 |
| International Code | 2601411 |
| Product Type | Hardwired Infrared Photocell Safety Sensors |
| Kit Configuration | 1 × Transmitter (TX) + 1 × Receiver (RX) |
| Nominal Range | 20 m |
| Horizontal Adjustment | 180° Total (±90°) |
| AC Power Supply | 12–33VAC, 50/60Hz |
| DC Power Supply | 15–35VDC |
| TX Current Consumption | 20mA |
| RX Current Consumption | 12mA Standby / 30mA Max. |
| Contact Capacity | 30V, 1A |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
| Installation | External / Surface Mounted |
20 Metre Automatic Gate Safety Photocells
The BFT COMPACTA A20-180 uses a transmitter and receiver positioned on opposite sides of the automatic entrance. An infrared beam is maintained between the two photocells.
When a vehicle, person or other obstacle interrupts the beam, the connected gate or barrier control system can respond according to its programmed safety logic.
The nominal operating range is up to 20 metres. BFT specifies that the effective range may be reduced by environmental conditions such as fog or rain.
180° Adjustable Photocell Head
A major advantage of the COMPACTA A20-180 is its 180° horizontal adjustment. Each sensor head can be rotated approximately 90° left or 90° right.
This provides greater installation flexibility and makes transmitter-to-receiver alignment easier on gate pillars, walls and other mounting surfaces where straight positioning may be difficult.
12–33VAC / 15–35VDC Power Supply
The BFT COMPACTA A20-180 supports a wide electrical supply range of 12–33VAC at 50/60Hz or 15–35VDC, allowing use with compatible BFT and other suitable gate automation control systems.
Always verify the accessory output voltage and photocell wiring requirements of the control board before connection.
IP44 Protection for External Installation
The COMPACTA A20-180 has an IP44 protection rating and is designed for external gate automation applications. Its specified operating temperature range is -20°C to +55°C.
Correct mounting, cable entry sealing and installation practices remain important for reliable outdoor operation.
BFT COMPACTA A20-180 Applications
- Automatic sliding gates
- Automatic swing gates
- Parking gate barriers
- Garage door automation
- Residential villa entrances
- Commercial building entrances
- Warehouse and factory gates
- Parking access systems
Compatible BFT Gate Automation
The BFT COMPACTA A20-180 can be used with compatible BFT automation control systems that provide the required photocell safety input and suitable accessory power supply.
This makes the COMPACTA suitable for many BFT sliding gate, swing gate, garage door and parking barrier installations. Compatibility should be confirmed according to the specific BFT control board and wiring configuration.
BFT COMPACTA A20-180 Installation
The kit consists of a TX transmitter and RX receiver. The two photocells are normally installed facing each other across the protected entrance and adjusted until reliable beam alignment is achieved.
After installation, the safety function must be tested by interrupting the infrared beam during test cycles and confirming that the automation responds according to the programmed safety logic.
BFT COMPACTA A20-180 Photocell UAE
We supply BFT COMPACTA A20-180 photocell sensors throughout the UAE for automatic gate motors, garage doors and parking barrier systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Before Ordering: Confirm the control-board accessory voltage and photocell input configuration to ensure correct compatibility.
