BFT BOTTICELLI SMART BT A850 Garage Door Opener

BFT BOTTICELLI SMART BT A850 850N Garage Door Opener UAE

BFT BOTTICELLI SMART BT A850 is a professional 24V automatic garage door opener designed for sectional garage doors with a maximum surface area of approximately 13 m². With a powerful 850 N pulling force, fast opening speed, intensive-use capability and BFT D-Track technology, it is an excellent solution for residential villas, compounds and frequently used garage doors in the UAE.

The BOTTICELLI SMART BT A850 combines a compact electromechanical drive with the integrated VENERE BT A DIS control unit, encoder-based travel management, slowdown and BFT U-Link connectivity. It is designed for smooth, controlled and reliable automatic operation of sectional garage doors.

BFT BOTTICELLI SMART BT A850 Key Features

• Genuine BFT sectional garage door operator
• Model: BOTTICELLI SMART BT A850
• Product code: P915212 00002
• 24V motor
• Maximum pulling force: 850 N
• Maximum sectional door surface: 13 m²
• Power consumption: 200 W
• Maximum opening speed with chain rail: 210 mm/sec
• Maximum opening speed with belt rail: up to 240 mm/sec
• Integrated VENERE BT A DIS control unit
• BFT D-Track force management
• U-Link connectivity
• Encoder-based travel control
• Mechanical opening stop
• Opening and closing slowdown
• Mechanical locking
• Manual release by cord or cable
• Intensive-use operation
• Protection rating: IP20
• Operating temperature: -20°C to +60°C

BFT BOTTICELLI SMART BT A850 Technical Specifications

850N Garage Door Motor for Sectional Doors Up to 13 m²

The BFT BOTTICELLI SMART BT A850 provides a maximum pulling force of 850 N and is designed for sectional garage doors with a surface area of up to approximately 13 m².

Door suitability should also be checked according to the actual door weight, balancing springs, track condition, door dimensions and operating frequency. A properly balanced garage door is essential for reliable automatic operation.

24V Intensive-Use Garage Door Opener

The BOTTICELLI SMART BT A850 uses a 24V motor and is designed for intensive operation. This makes it suitable for residential properties and shared entrances where the garage door may operate frequently throughout the day.

The low-voltage motor also allows precise electronic control of movement, slowdown and obstacle detection.

VENERE BT A DIS Control Unit

The BOTTICELLI SMART BT A850 incorporates the BFT VENERE BT A DIS control unit. The control board provides electronic display programming, automatic torque management, automatic closing functions and integrated radio-control capability.

Its display makes setup and diagnostics easier during installation and servicing.

BFT D-Track Force Management

BFT D-Track electronically manages the force required to move the garage door throughout its travel. The system helps detect abnormal resistance and allows the operator to react accordingly.

This function should be used together with correct door balancing, appropriate control-board settings and compatible safety devices.

U-Link Connectivity

The SMART BT A850 supports BFT U-Link, allowing compatible BFT communication and automation accessories to be integrated with the garage door operator.

This is one of the important differences between the SMART BT A850 and the basic BOTTICELLI BT A650.

Fast Garage Door Opening

With a compatible chain rail, the BOTTICELLI SMART BT A850 can reach an opening speed of approximately 210 mm/sec. With compatible belt-rail configurations, maximum opening speed can reach approximately 240 mm/sec.

Actual speed can vary depending on rail type, door dimensions, programming and operating conditions.

Encoder Travel Management

The garage door operator uses an encoder-based travel management system together with a mechanical opening stop. The encoder continuously monitors motor movement and provides precise electronic control of the garage door travel.

Opening and Closing Slowdown

The BOTTICELLI SMART BT A850 supports controlled slowdown near the end of travel. This helps reduce mechanical shock and provides smoother garage door opening and closing.

Manual Release During Power Failure

If electrical power is unavailable, the BOTTICELLI SMART BT A850 can be disengaged using its manual cord or cable release. This allows the sectional garage door to be operated manually when required.

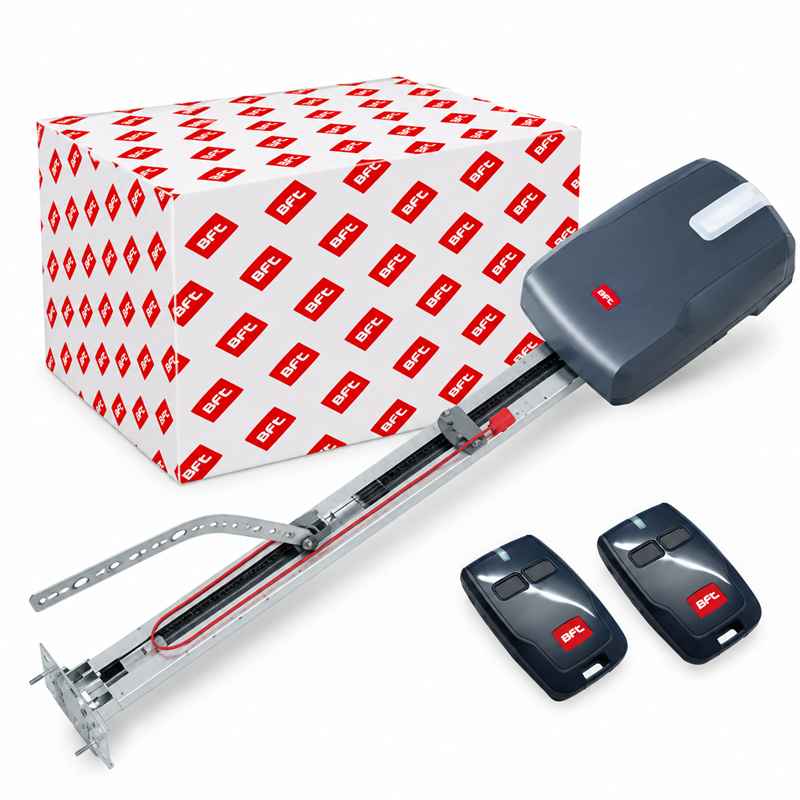

Compatible BFT Garage Door Rails

The BOTTICELLI BT A650 and SMART BT A850 use compatible BFT BIN 650-850 rail systems, available in different lengths and in both chain and belt-drive configurations.

• BFT BIN 650-850 chain rail 2900 mm
• BFT BIN 650-850 chain rail 3500 mm
• BFT BIN 650-850 belt rail 2900 mm
• BFT BIN 650-850 belt rail 3500 mm

The correct rail length should be selected according to the sectional door height and required effective travel.

BOTTICELLI BT A650 vs SMART BT A850

Recommended Applications

• Residential villa garage doors
• Sectional overhead garage doors
• Residential compounds
• Frequently used private garages
• Sectional doors up to approximately 13 m²

BFT BOTTICELLI SMART BT A850 Garage Door Opener UAE

We supply BFT BOTTICELLI SMART BT A850 garage door openers throughout the UAE with professional installation, programming and technical support.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Installation Check: Before ordering, confirm the sectional garage door dimensions, approximate door weight, spring balance, rail condition, ceiling clearance and required rail length to ensure the BOTTICELLI SMART BT A850 is suitable for the installation.
