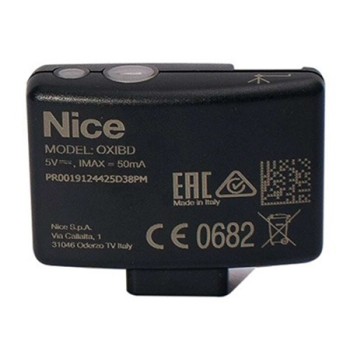

NICE OXIBD is compatible with all Nice control units with SM connector. OXIBD receivers can be used as signal repeaters to increase
the operating distance between the transmitters and other Nice bidirectional receivers.
Features: Nice Mesh Technology: The Nice bidirectional radio protocol with mesh technology has numerous advantages: extension of the radio range to 500m (max.10 Hops) confirmation by the automation of correct command reception; the possibility of checking automation status at any moment; high security, thanks to the encrypted communication low energy consumption in standby. Ergonomic design: antenna connectors,
key and programming LED inconvenient practical positions. Maximum flexibility: can memorise up to 750 bidirectional transmitters or 1024 unidirectional transmitters.
Technical Specs: Frequency: 433.92 Mhz Input impedance: 50 Ω Sensitivity: -108 dBm Encoding: BD, O-Code, FloR, TTS, Flo, Smilo Number of channels: 4 (on “SM” plug-in connector) Power supply: 5 Vdc Current draw: 50 mA (max) Protection class: IP 30
